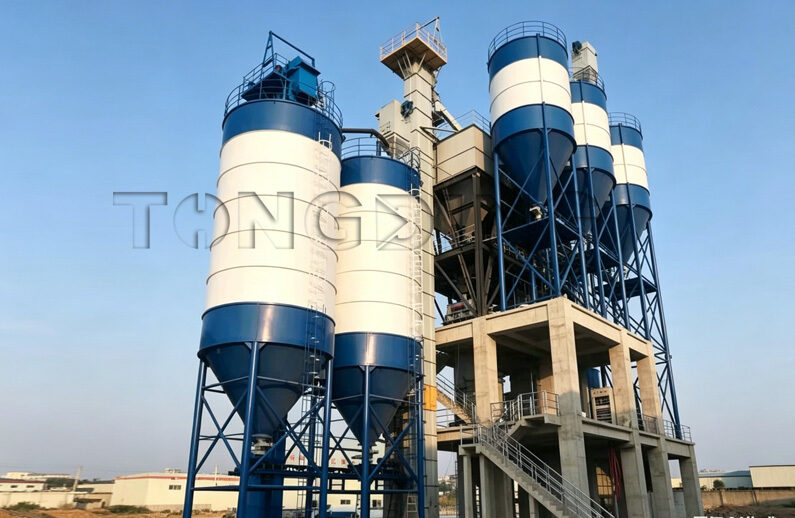

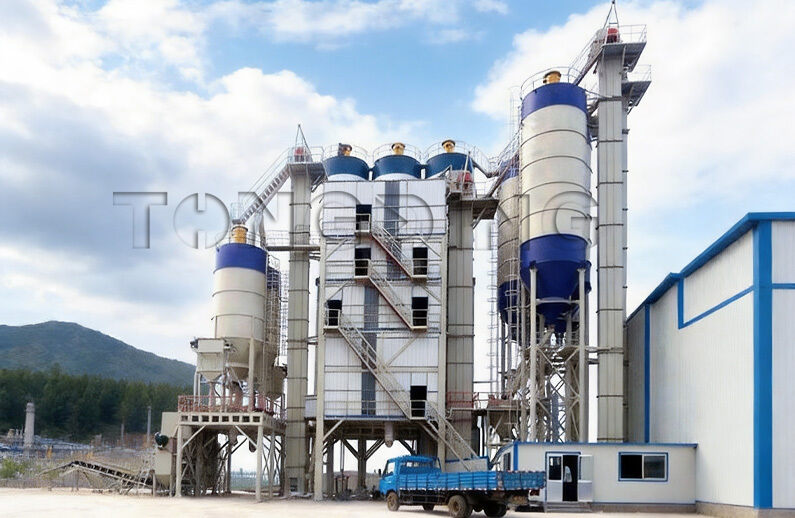

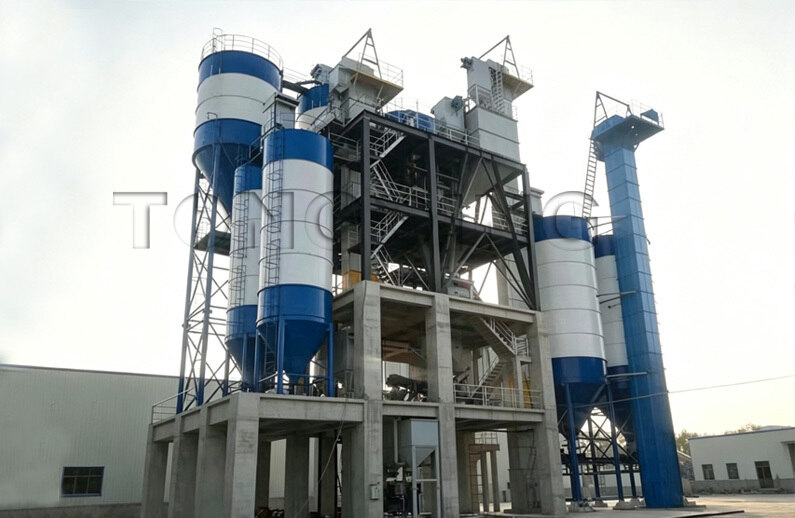

Plastering Mortar Production Line
Advanced mixing technology: twin-shaft non-gravity mixer with fast mixing speed and wear-resistant mixing blades for long-term stable operation.
Features:
- Flexible capacity range: 10–170 tons per hour
- Optimized specifically for plastering mortar
- Supports fine sand processing and high-precision screening to improve fineness and workability, effectively reducing cracking and hollowing.
- Application scope: Ordinary mortars: floor mortar, masonry mortar, plastering mortar, etc. Special mortars: tile adhesive, interior & exterior putty powder, grout (white/black/gold), thermal insulation mortar, etc.
Working Principle
This production line adopts a fully automatic process flow, including drying, fine screening, batching, high-efficiency mixing, mixing, and packaging.
Sand must be processed by a rotary drum dryer and then fed into a fine screening system to ensure uniform and fine particle size, which is critical for plastering quality.
Water-retaining agents such as cellulose ether are accurately added via the batching system to guarantee excellent water retention and workability of the mortar.
In the mixing stage, materials are fully blended to give the finished product good lubricity and smooth workability. After mixing, the finished product enters the packaging system. The whole line uses a high-efficiency dust removal system to prevent fine powder overflow.
Applicable Materials
Dry Mortar
Cementing Material
Putty Powder
Grouting Material
Masterbatch
Additive
Vitrified Microsphere
Hot Melt Marking Coating
Plastering Gypsum
Specifications
|
MODEL |
TDSJ2 |
TDSJ3 |
TDSJ4 |
TDSJ6 |
TDSJ10 |
备注 |
|
CAPACITY(T/H) |
TDSJ2 |
TDSJ3 |
TDSJ4 |
TDSJ6 |
TDSJ10 |
|
|
HOST MOTOR(kw) |
10-20 |
20-40 |
40-60 |
60-80 |
80-120 |
|
|
AGGREGATE SIZE(mm) |
18.5 |
22 |
30 |
45 |
55 |
|
|
AGGREGATE SCALE(kg) |
0〜4.75 |
0〜4.75 |
0〜4.75 |
0〜4.75 |
0〜4.75 |
customizable |
|
CEMENT SCALE(kg） |
(200-1300)±1% |
(200-2000)±1% |
(400-3000)±1% |
(400-3800)±1% |
(500-5800)±1% |
customizable
|
|
ADDITIVE SCALE(kg) |
（100-700）±1% |
（100-800）±1% |
（200-1300）±1% |
（200-1800）±1% |
（200-2000）±1% |
customizable |
