Biomass Pellet Production Line
It is widely applied in the fields of renewable energy and clean fuels.
Features:
- Capacity: Customizable
- Heat Source: Suitable for biomass, natural gas, diesel, coal, etc.
- Raw Materials: Sawdust, wood chips, wood shavings, bamboo shavings, rice husk, bagasse, corn straw, wheat straw, rice straw, sorghum straw, oat straw, rye straw, bean stalks, peanut shells.
Working Principle
The biomass pellet production line uses various agricultural and forestry residues such as sawdust, straw, rice husk, and bagasse (with a moisture content of 35%–56%) as raw materials. After pre-treatment, the materials are dried to an optimal moisture level for pelletizing, then finely crushed and conveyed into a uniform feeding system.
The material enters the pellet machine, where it is compressed by rollers and a ring die under high temperature and pressure, forming dense and solid biomass pellets. The entire process adopts a continuous production mode with automatic control, ensuring stable operation and high efficiency, with a pelletizing rate of up to 98%.
The system can be customized and optimized based on raw material characteristics, production capacity, and site conditions, making it widely applicable in renewable energy and clean fuel production.
Specifications
|
Model |
Capacity(t/h) |
Motor power(kw) |
Weight(ton) |
Area(m²） |
|
TDBPK10 |
0.8-1.0 |
135 |
45 |
10×24m |
|
TDBPK15 |
1.2-1.5 |
175 |
47 |
|
|
TDBPK20 |
1.5-2.0 |
210 |
55 |
|
|
TDBPK30 |
2.5-3.0 |
255 |
68 |
12×26m |
|
TDBPK50 |
4.5-5.0 |
300 |
73 |
Related Products
Sand Dryer Production Line
Drying: Through disk feeder and wet sand belt conveyor, feed wet sand from moist-material bin to rotary dryer for drying, heated by gas combustion chamber.

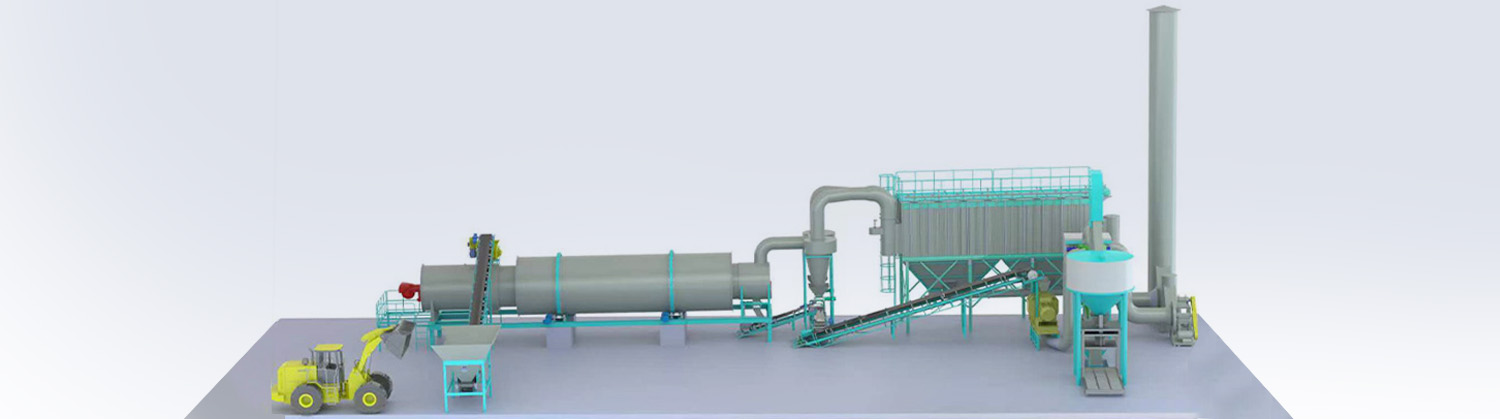

Sea Sand Dryer
