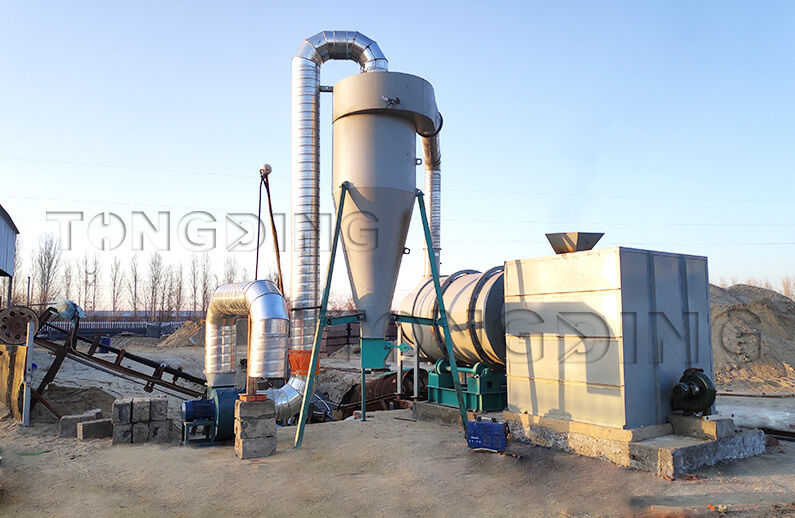

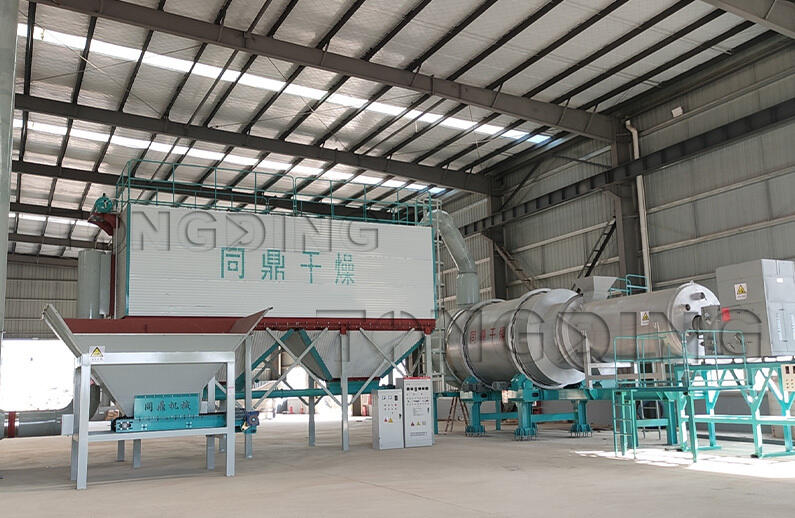

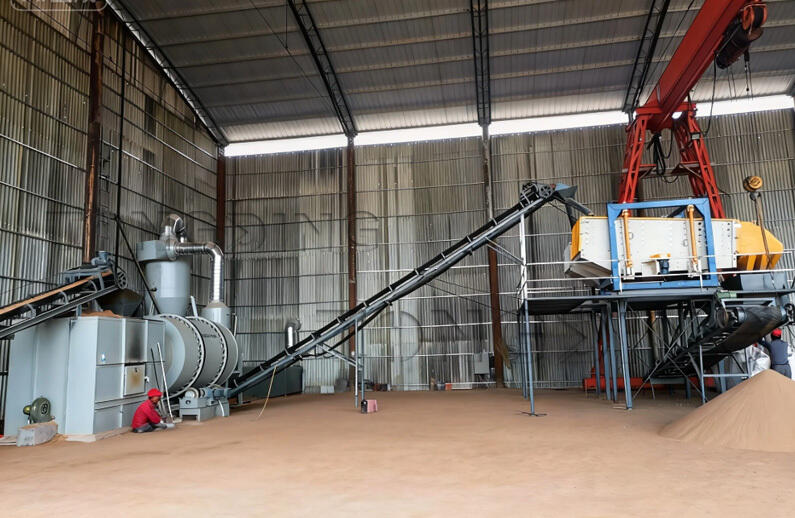

Industrial Salt Dryer
Our industrial rotary dryers are versatile, high-efficiency solutions tailored to process awide range of granular and powdery materials.
Features:
- .Capacity: 3-120 T/H (Customizable)
- Moisture Reduction: 5% →0.5%
- Heat Source: Coal / Gas / Biomass
- Powdery materials:including industrial salt, sea salt, crude salt, and other crystalline salt products with varying moisture levels.
* Certified AISI 304L / 316L Stainless Steel Anti-Corrosion Configuration

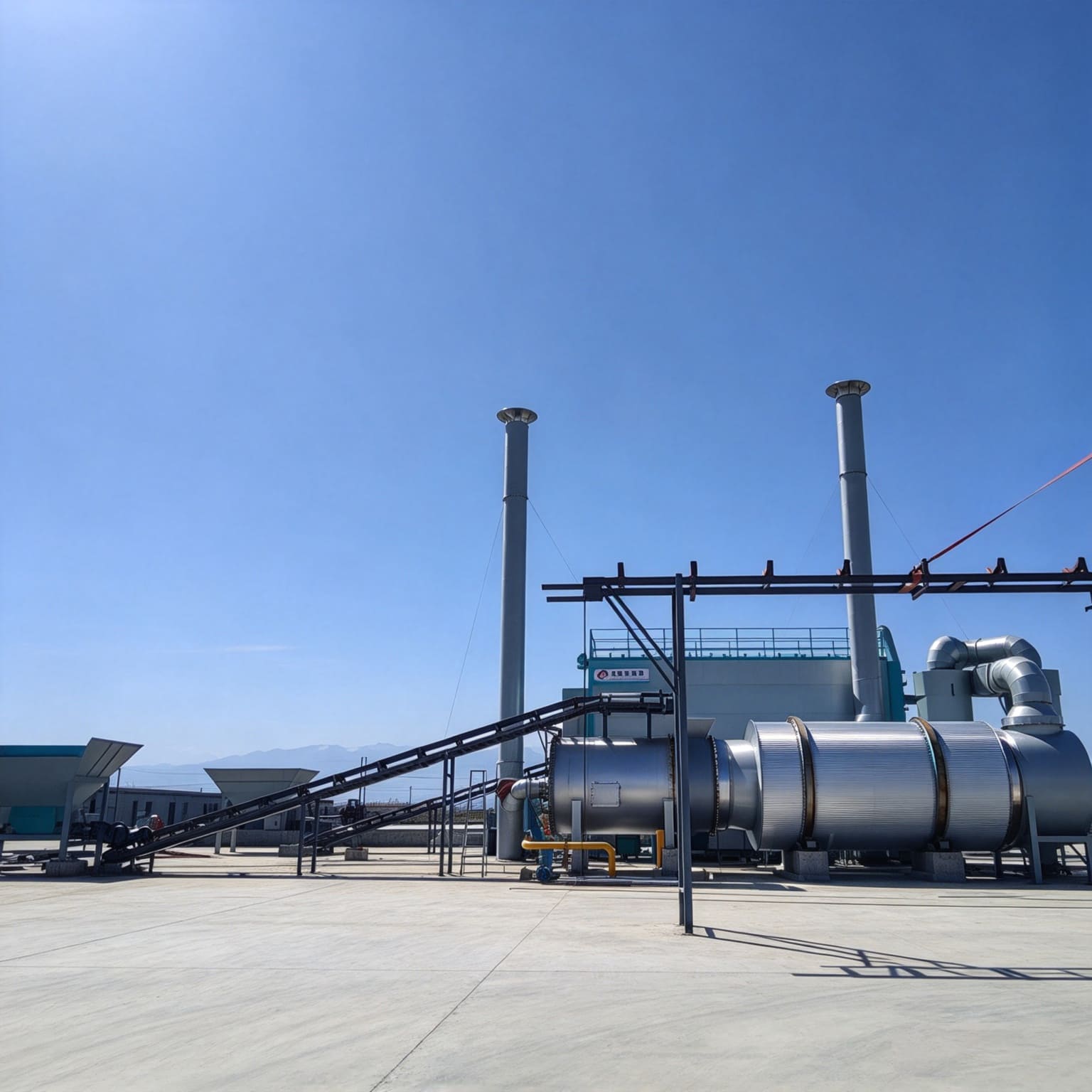

Industrial Salt Rotary Drum Dryer
Heavy-Duty Anti-Corrosive Mineral & Crystallized Salt Drying Plant
Tongding Engineered for mineral refining plants, marine salt harvesting groups, and fine chemical manufacturers globally. This zero-contamination system drops salt moisture from 6% down to <0.5% continuously.
- Capacity Range: 10 to 60+ Metric Tons Per Hour (TPH)
- Material Compatibility: Crystallized Salt, Sea Salt, Rock Salt, Chemical Slag
- Contact Metallurgy: 201L / 304L Stainless Steel
- Heat Source Option: Indirect Fired Diesel, Natural Gas, or Biomass Generator
- Energy Innovation: Patented Zero-Horizontal-Thrust Driving (Saves 30%+ Power)
Looking for a Custom Industrial Salt Drying Solution?
Get your tailored technical arrangement drawings, fuel OPEX estimation, and commercial proposal within 24 hours.
REQUEST A QUICK QUOTEIndustrial Salt dryer Product Technical Overview & Equipment Advantages
The standard carbon steel or direct-fired rotary dryer collapses under the chemical stresses of industrial salt processing. Chloride pitting corrosion and exhaust flue gas contamination destroy the purity of crystallized minerals. Tongding customized industrial salt rotary drum drying lines are engineered from the ground up to solve these dynamic load and corrosion constraints completely.
1. Complete AISI 304L Anti-Corrosion Defense
Damp salt acts as a harsh electrolyte. To secure a 15+ year operational duty cycle under a 16-hour daily continuous schedule, all interior drum hulls, multi-bending lifting flights, and dust collection components are fabricated from premium non-magnetic 304L stainless steel (wall thickness ≥2.5mm). The contact surfaces undergo intensive 0.4um internal mirror polishing to eliminate material surface tension, preventing wet salt crystals from binding or scaling onto the drum inner shell.
2. 100% Smoke-Free Indirect Heating Technology
Industrial or food-grade salt cannot tolerate sulfur dioxide or unburned soot contamination from burner flames. Our system incorporates a heavy-duty, refractory-lined independent Indirect Hot Air Generator. The fuel oil or gas combusts entirely within an isolated alloy chamber, transferring heat purely to clean ambient air through high-efficiency heat exchanger elements. Only clean, heated air contacts the mineral grid, preserving baseline salt color and chemical purity.
3. Industrial Salt Rotary Dryer Technical Specifications
| Product Model | Drum Volume (m³) | Salt Capacity (t/h) | Drive Power (kW) | Rotary Speed (r/min) | Final Moisture Curve |
|---|---|---|---|---|---|
| TDSJ-HG1625 | 3.0 | 5 – 8 TPH | 4.0 kW | 8 – 10 r/min | ≤0.5% (From 6% Max) |
| TDSJ-HG2240 | 9.1 | 10 – 15 TPH | 7.5 kW | 8 – 10 r/min | ≤0.5% (From 6% Max) |
| TDSJ-HG2958 | 23.8 | 30 – 40 TPH | 22.0 kW | 6 – 8 r/min | ≤0.5% (From 6% Max) |
| TDSJ-HG3270 (50T Class) | 35.4 | 50 – 60 TPH | 44.0 kW | 6 – 8 r/min | ≤0.5% (From 6% Max) |
| TDSJ-HG3890 | 65.3 | 60+ TPH (Bulk) | 60.0 kW | 4 – 6 r/min | ≤0.5% (From 6% Max) |
* Custom configurations, alternative heat supply modes, and specific physical footprints are engineered upon request.
4. Zero-Horizontal-Thrust Mechanical Engineering
Processing 50 tons of salt per hour exerts extreme perpendicular pressure on trunnion wheels. Our patented Zero-Horizontal-Thrust Drive System aligns the central girth gear and driving pinion precisely under the drum's vertical center line (deviation ≤5mm). The lateral dynamic load is completely balanced out, reducing driving motor power consumption by more than 30% while extending the trunnion roller and bearing service life by 2 to 3 times under a continuous operation schedule.
5. Anti-Condensation Pulse Dust Filtration
To completely stop hot salt dust from condensing and blinding baghouse components, Tongding plant utilizes an Offline Pulse Jet Baghouse featuring full rock-wool exterior insulation (50mm rock wool layer protected by 0.5mm color steel armor tiles). Beneath the filter hoppers, a patented centerless stainless-steel screw conveyor sweeps fine dust away without powder bridging or shaft packing failure, maintaining an ideal 99.7% air filtration efficiency.
Specifications
| Model | Power（KW） | Capacity(T/H) | Rotary speed （r/min） | Installation Angle | final Moisture | Heat Supply Mode |
| HG1625 | 4kw | 3-8 t/h | 9 | Aclinic | ≤0.5％ | 1) Firewood 2) Pulverized coal 3) Diesel 4) Natural gas 5) not carbonizedbiomass fuel 6) carbonizedbiomass fuel |
| HG2240 | 7.5kw | 10-15 t/h | 9 | |||
| HG2250 | 7.5kw | 20t/h | 9 | |||
| HG2958 | 5.5kw*4 | 30t/h | 7 | |||
| HG3270 | 11kw*4 | 60t/h | 7 | |||
| HG3890 | 15kw*4 | 100t/h | 7 |
