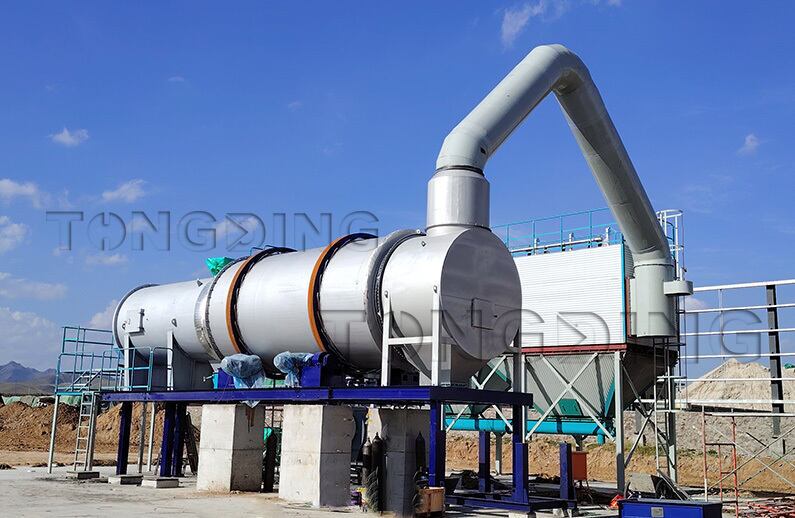

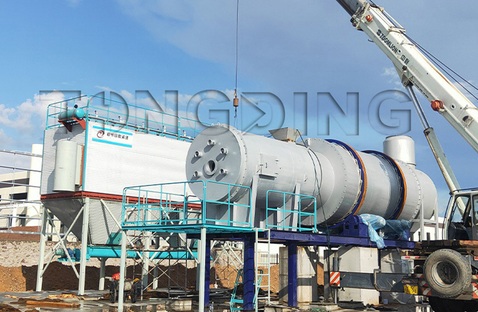

Three Pass Sand Dryer
Tongding’s triple cylinder rotary dryer is a core product integrating multiple invention patents. The three‑stage design ensures maximum heat exchange: the multi‑fold lifting plates inside the inner cylinder create a dense sand curtain for first‑stage drying; the serrated plates in the middle cylinder re‑scatter the material for second‑stage drying; the outer cylinder conveys and finishes the drying process.
Features:
- Capacity: 3-120 T/H (Customizable)
- Moisture Reduction: 25% → 3%
- Heat Source: Coal / Gas / Biomass
- Powdery materials: (1)Construction sands: river sand, sea sand, yellow sand, quartz sand, foundry sandplate sand, steel sand, fracturing sand; (2)Mineral & mining materials: tailings sand, copper ore sand, iron ore sand, coloredsand, fluorite powder, potash feldspar powder, sodium feldspar powder. (3)And other building materials sands and industrial bulk materials. Process: Drying → Dust Collection → Screening.
Three Pass Sand Dryer Machine
High Efficiency Rotary Dryer for Silica Sand, Mortar Sand and Industrial Sand
Industrial Three Pass Sand Dryer Manufacturer
Reduce Sand Moisture from 20% to Below 0.5%
30% Fuel Saving | Stable Output Guarantee | 5-Year Warranty
Output Guarantee – Full Refund if Not Met
Customized Capacity 5-50TPH
Suitable for Gas, Diesel, Coal & Biomass | CE Certified
Applications of Three Pass Sand Dryer
Tongding triple pass rotary dryer is widely used in:
- Dry mortar sand production
- Silica sand processing
- Frac sand drying
- Foundry sand drying
- Sea sand drying
- River sand drying
- Glass sand production
- Board material sand production
- Tailings sand recycling
- Mining material drying
Suitable materials include:
Common Problems in Traditional Sand Drying
Many sand plants face these issues:
- High fuel consumption
- Low drying efficiency
- Sand blockage inside drum
- Uneven moisture content
- Excessive dust pollution
- Frequent belt deviation
- Low production capacity
- High maintenance cost
Tongding Three Pass Dryer is specially designed to solve these industrial drying problems.
Advantages of Tongding Three Pass Sand Dryer
1. Triple Cylinder Structure
The material passes through inner cylinder, middle cylinder and outer cylinder, maximizing heat exchange efficiency and reducing heat loss.
2. Multi-Bending Lifting Plates
Special patented lifting plates create a “sand waterfall” effect, ensuring full contact between hot air and sand. Drying efficiency increased by 4.5 times.
3. Stable Operation
Unique internal structure keeps the drum balanced during operation. No belt deviation. Lower maintenance rate.
4. Fuel Saving Design
Advanced thermal insulation and airflow design reduce fuel consumption by 30%.
5. Anti-Blocking System
Large kiln head and serrated lifting plates prevent wet sand sticking and material blockage.
6. Long Service Life
Wear-resistant alloy steel and forging technology improve durability by 3-5 times compared with ordinary materials.
7. Intelligent Automatic Control
PLC automatic control system optional. Easy operation and reduced labor cost.
8. Strong After-Sales Service
Free layout design, Installation guidance, Engineer overseas service, 24/7 online support, Spare parts support.

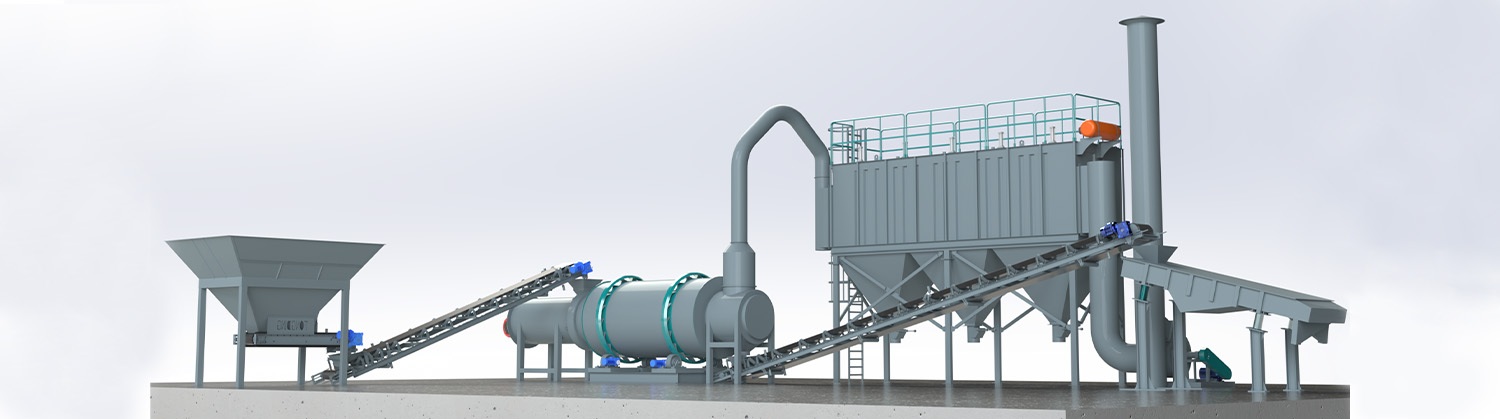

Working Principle of Three Pass Sand Dryer
- Wet sand enters the dryer through the belt feeder.
- The material first enters the inner cylinder, where the lifting plates continuously disperse the sand to form a sand curtain.
- Then the material moves into the middle cylinder and outer cylinder for repeated drying and heat exchange.
- Finally, the dry sand enters the discharge hopper after reaching the target moisture level.
The triple-pass structure greatly increases heat utilization and drying efficiency.
Patented Technology
Tongding has multiple patents related to sand drying technology:
- Belt feeder for wet sand weighing
- Dual heat source hot air furnace
- Pulse dust collector quick disassembly system
- Horizontal dryer support device
- Sand dryer appearance design patent
Our patented technology ensures: Higher efficiency, Lower energy consumption, Longer equipment life, Stable production.
Suitable for Global Markets
Widely exported to:
Suitable for high-humidity, high-temperature and desert environments.
Get Your Free Sand Drying Solution
Tell us your:
Raw material | Moisture content | Required capacity | Fuel type | Installation area
We will provide:
Free layout drawing | Equipment quotation | Production line solution | ROI analysis
Contact Tongding today.
Applicable Materials
Facturing Sand
Glass Sand
Iron Powder
Quartz Sand
Titanium Powder
Machine-made Sand
Slag
Stone Powder
River Sand
Specifications
| Model | Power（KW） | Capacity(T/H) | Rotary speed （r/min） | Installation Angle | final Moisture | Heat Supply Mode |
| HG1625 | 4kw | 3-8 t/h | 9 | Aclinic | ≤0.5％ | 1) Firewood 2) Pulverized coal 3) Diesel 4) Natural gas 5) not carbonizedbiomass fuel 6) carbonizedbiomass fuel |
| HG2240 | 7.5kw | 10-15 t/h | 9 | |||
| HG2250 | 7.5kw | 20t/h | 9 | |||
| HG2958 | 5.5kw*4 | 30t/h | 7 | |||
| HG3270 | 11kw*4 | 60t/h | 7 | |||
| HG3890 | 15kw*4 | 100t/h | 7 |
