Twin Shaft Paddle Mixer
Advanced mixing technology: twin-shaft non-gravity mixer with fast mixing speed and wear-resistant mixing blades for long-term stable operation.
Features:
- Flexible capacity range: 10–170 tons per hour
- Equipped with high-precision metering system and flying knife + twin-shaft non-gravity mixing system
- Delivers stable bonding strength, high added value, and profit margin
- Application scope: Ordinary mortars: floor mortar, masonry mortar, plastering mortar, etc. Special mortars: tile adhesive, interior & exterior putty powder, grout (white/black/gold), thermal insulation mortar, etc.
Non-gravity Double Shaft Paddle Mixer
The Non-gravity Double Shaft Paddle Mixer is Tongding Machinery Equipment Company a high-performance mixing machine designed for dry mortar, tile adhesive, wall putty, gypsum plaster and various powder materials. Through synchronized counter-rotating shafts and specially designed paddles, the mixer creates a fluidized "non-gravity" mixing zone, allowing materials to move in multiple directions simultaneously and achieve fast, uniform blending. This mixer is widely used in dry mortar plants, tile adhesive production lines,wall putty plants, chemical powder processing plants and additive manufacturing facilities.
Why Choose Our Double Shaft Paddle Mixer
Fast Mixing Time
3‑5 minutes per batch, depending on formula.
>98% Uniformity
Consistent product quality, batch after batch.
Low Energy Consumption
Optimized paddles reduce power usage.
Fast Discharge
Large door, minimal residue, quick unloading.
Stable Operation
Heavy‑duty gearbox & direct drive, 24/7 reliable.
Wide Material Range
Dry mortar, tile adhesive, gypsum, additivesmortar productioncementing materials, putty powder, soil curing, masterbatch etc.
Working Principle
The mixer adopts two counter-rotating shafts equipped with specially arranged paddles. During operation, materials are thrown into a fluidized mixing zone where particles move in radial, circumferential and axial directions simultaneously. This unique non-gravity mixing principle ensures rapid and highly uniform blending without dead corners.
Technical Specifications
| Model | Volume (m³) | Power (kW) | Rotary Speed (r/min) | Loading Coefficient | Overall Size (mm) |
|---|---|---|---|---|---|
| WSZ2 | 2 | 18.5 | 43 | 0.4-0.6 | 2460×1640×1520 |
| WSZ3 | 3 | 22 | 43 | 0.4-0.6 | 2850×1640×1520 |
| WSZ4 | 4 | 30 | 29 | 0.4-0.6 | 2800×2110×1950 |
| WSZ6 | 6 | 45 | 29 | 0.4-0.6 | 3130×2470×2120 |
| WSZ10 | 10 | 55 | 29 | 0.4-0.6 | 3600×3000×2510 |
Customized capacities (up to 20 m³) and special materials (stainless steel) available on request.
Applications
Construction Materials
- Dry Mortar
- Tile Adhesive
- Wall Putty
- Gypsum Mortar
- Waterproof Mortar
Chemical & Mining
- Powder Additives
- Pigments
- Mineral Powders
- Fine Aggregate Blending
- Fertilizer Mixing
Key Advantages
- Counter-Rotating Double Shafts – Ensure rapid and uniform material movement.
- Special Paddle Design – Creates a non-gravity mixing environment.
- Heavy-Duty Structure – Long service life and reduced maintenance costs.
- Adjustable Loading Capacity – Ideal mixing performance at 40%-60% filling ratio.
- Easy Maintenance – Quick access design simplifies inspection and replacement.
Optional Configurations
Wear-resistant paddles
For highly abrasive materials.
High-hardness alloy steel contact parts
For hygiene or corrosion resistance.

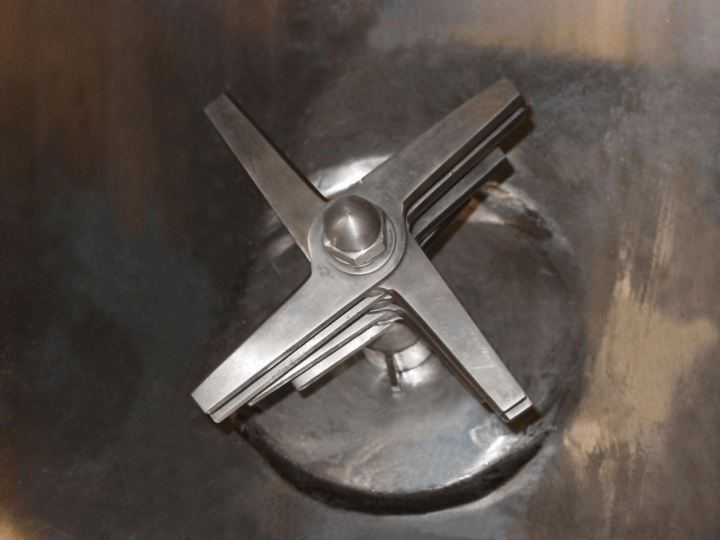

knife throwing
High-speed shear force, used for large agglomerates / short fiber additives, etc.
Automatic discharge system
For fully automated lines.
Frequency inverter control
Adjustable mixing speed.
Explosion-proof motor
For hazardous environments.
Frequently Asked Questions
What mixing uniformity can be achieved?
Over 98% for standard dry powder materials, ensuring consistent product quality.
How long does one mixing cycle take?
Typically 3–5 minutes, depending on material and formula.
Can it mix tile adhesive?
Yes. It is widely used for tile adhesive production, including C1 and C2 grades.
Is stainless steel available?
Yes. Customized stainless steel contact parts can be provided for special applications.
Can it be integrated into a production line?
Yes. It can be used as a standalone mixer or integrated into a complete dry mortar production line with PLC control.
What maintenance is required?
Regular lubrication, inspection of seals and wear parts. Our design allows easy blade replacement.
Ready to Upgrade Your Mixing Process?
Whether you need a single mixer or a complete dry mortar plant, Tongding provides tailor-made solutions based on your capacity, material, and budget. Our engineers are ready to assist with layout design, installation, and training.
Send us your inquiry – include required capacity (m³ or tons/hour), materials, and any special requirements. You will receive a quotation within 24 hours.
Detailed View
Applicable Materials
Dry Mortar
Cementing Material
Putty Powder
Grouting Material
Masterbatch
Additive
Vitrified Microsphere
Hot Melt Marking Coating
Plastering Gypsum
Specifications
| Model | Capacity(T/H) | Power（KW） | Volume(m3) | Load Factor | Dimension(L*W*H, mm) |
| WSZ2 | 10-15t/h | 18.5 | 2 | 0.4-0.6 | 2460*1640*1520 |
| WSZ3 | 15-25t/h | 22 | 3 | 2850*1640*1520 | |
| WSZ4 | 25-40t/h | 30 | 4 | 2800*2110*1950 | |
| WSZ6 | 60-120t/h | 45 | 6 | 3130*2470*2120 | |
| WSZ10 | 100-170t/h | 55 | 10 | 3600*3000*2510 |
