Improve packaging efficiency, reduce dust emissions, and achieve high weighing accuracy with Tongding automatic packing systems. We provide complete packaging solutions for dry mortar, tile adhesive, wall putty, gypsum plaster, skim coat, cement mortar, and other powder materials.
Quick Specifications
| Feature | Specification |
| Packaging Capacity | 200–600 Bags/H |
| Bag Weight | 10–50 kg |
| Weighing Accuracy | ±0.2% ~ ±0.5% |
| Packaging Types | Valve Bag / Open Mouth / Jumbo Bag |
| Control System | PLC + Touch Screen |
| Suitable Materials | Dry Mortar, Tile Adhesive, Wall Putty, Gypsum, Cement |
| Optional Equipment | Palletizer, Robot Stacker, Conveyor |
Why Choose Tongding Packing System

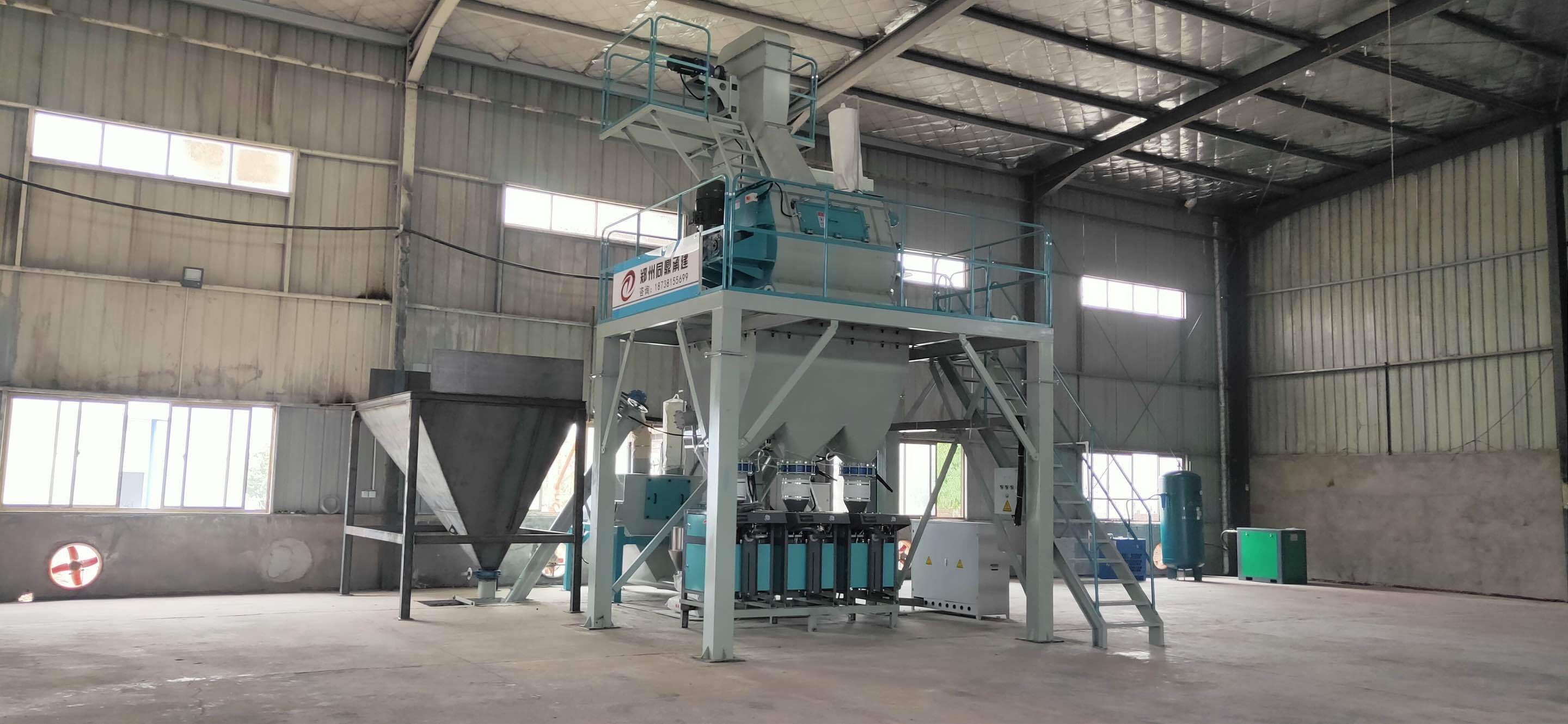

Tongding automatic packing systems are designed for continuous industrial production and can be integrated into any dry mortar production line.
- ✔ High Packaging Accuracy
- ✔ Fast Packaging Speed
- ✔ Low Dust Emission
- ✔ Easy Maintenance
- ✔ PLC Intelligent Control
- ✔ Multiple Packaging Options
- ✔ Customized Layout Design
- ✔ Turnkey Integration
Packaging Solutions We Offer
Tongding provides four types of automatic packing systems to meet different production requirements.

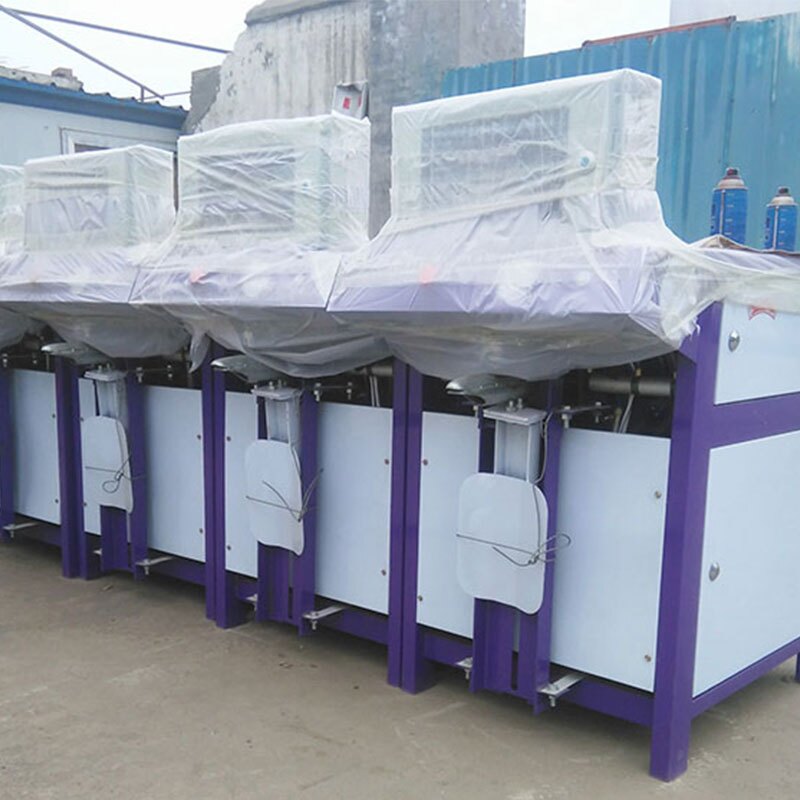

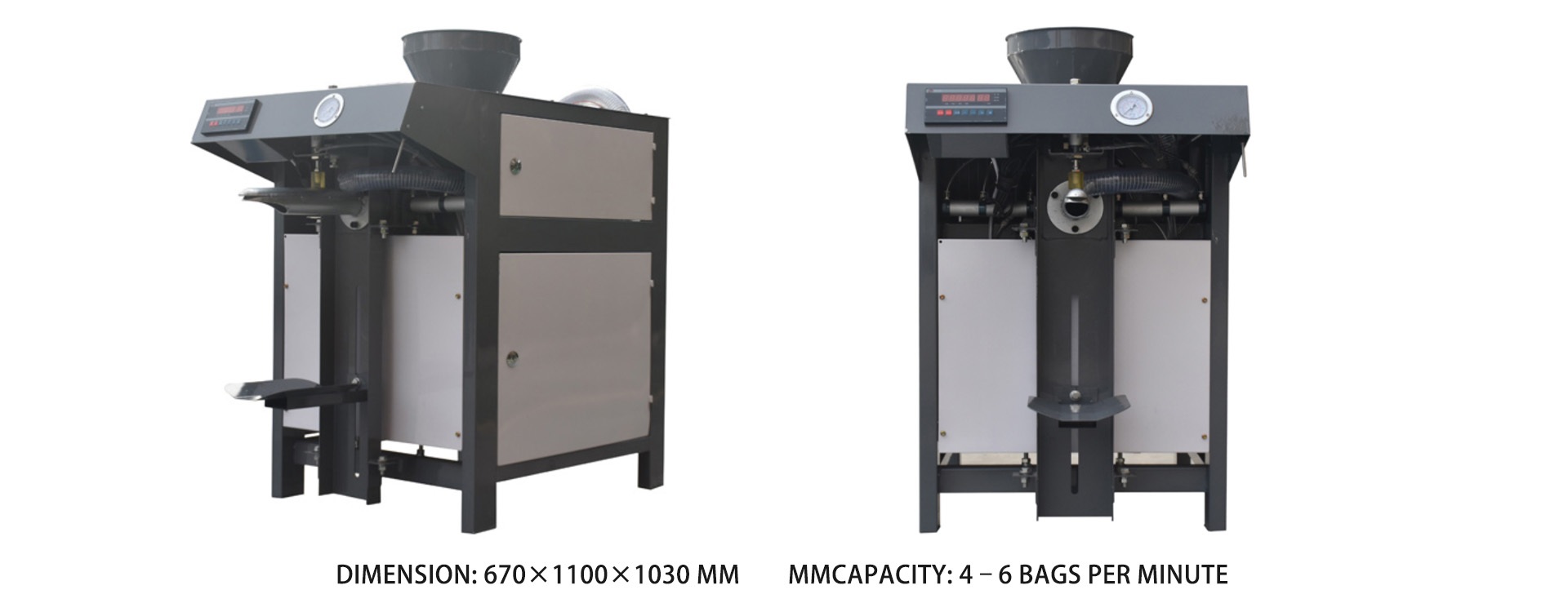

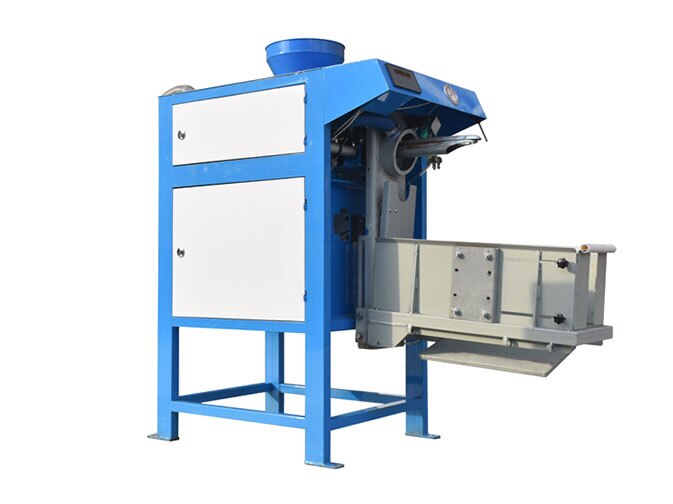

① Impeller Valve Bag Packing Machine
Cost-Effective Solution for Standard Dry Mortar
The impeller packing machine uses a high-speed rotating impeller combined with compressed air to continuously feed powder materials into valve bags.
It is the most economical solution for standard dry mortar production.
Working Principle
Material Hopper → Impeller Feeding → Compressed Air Assistance → Valve Bag Filling → Automatic Weighing → Finished Bag
Advantages
- Low investment cost
- Compact structure
- Easy installation
- Stable operation
- High production capacity
- Easy maintenance
Limitations
- Slightly higher dust emission
- Lower weighing accuracy than air-float models
Typical Performance
| Item | Value |
| Packing Speed | ≈8 Seconds/Bag |
| Accuracy | ±0.5% |
| Suitable Bag | Valve Bag |
| Best For | Standard Dry Mortar, Cement Mortar |

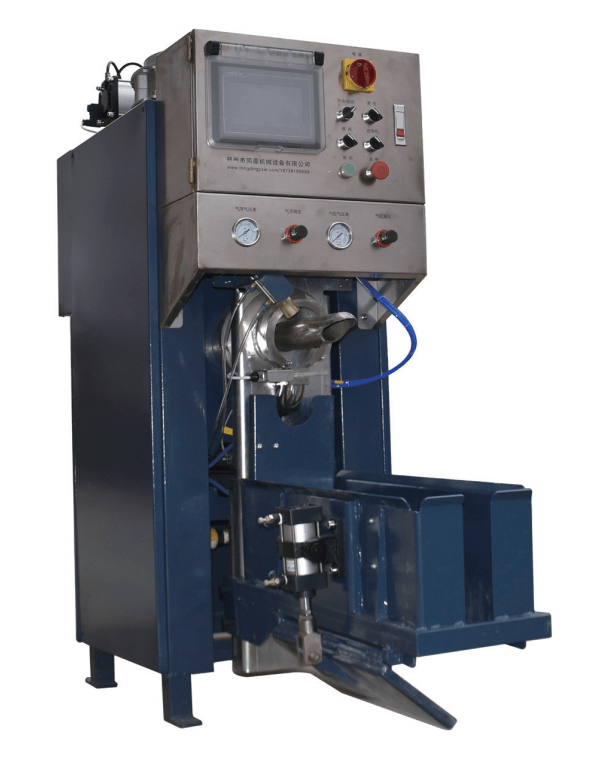

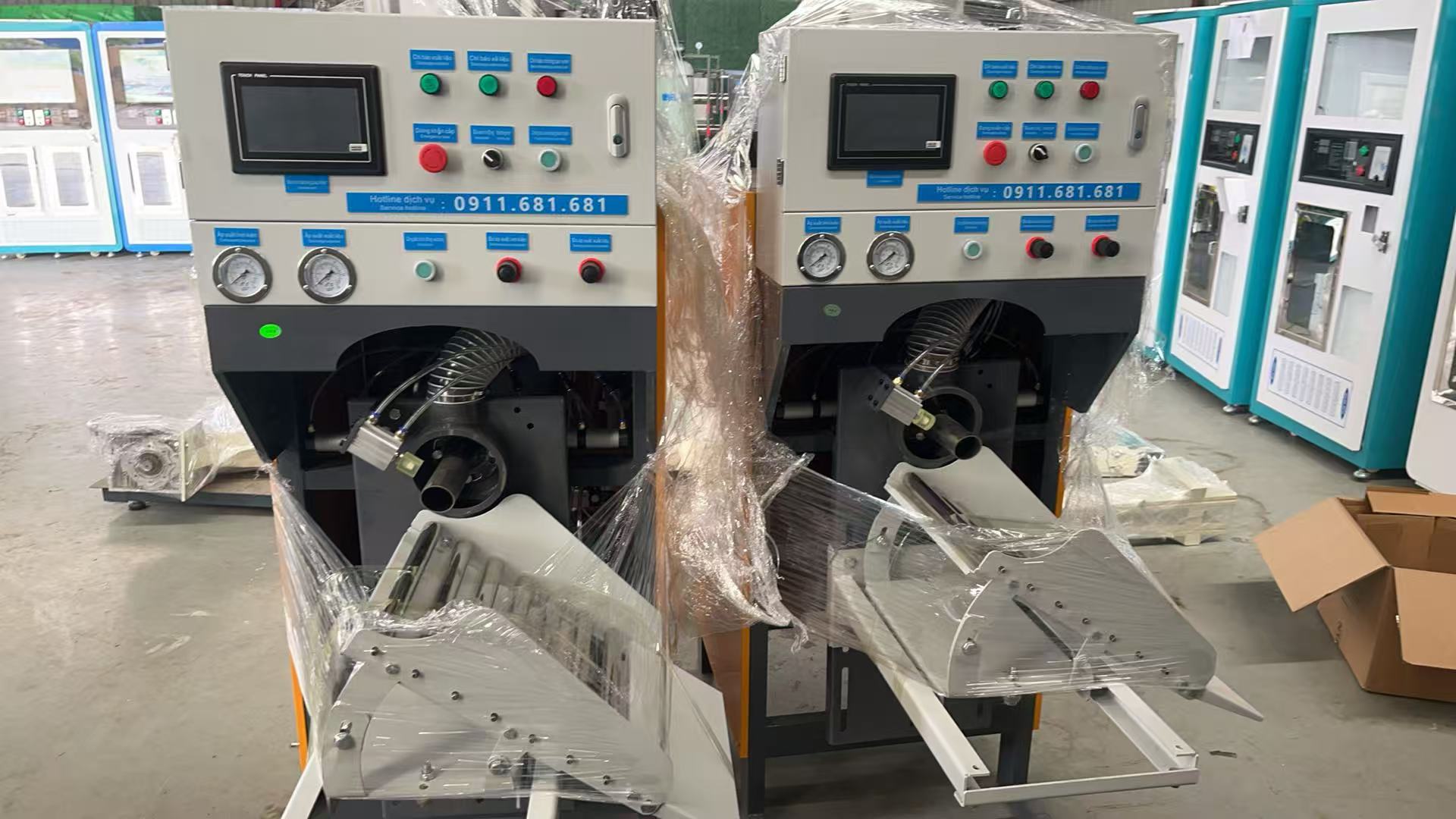

② Air Float Valve Bag Packing Machine
Best Choice for High-Value Powder Materials
The air-float packing machine suspends powder materials using low-pressure air, allowing materials to flow smoothly into the bag.
This technology significantly improves weighing accuracy while reducing dust.
Especially recommended for:
- Tile Adhesive
- Wall Putty
- Gypsum Plaster
- Fine Powder Products
Working Principle
Material Hopper → Low-pressure Air Suspension → Uniform Material Flow → Valve Bag Filling → Dust Recovery → Finished Product
Advantages
- Highest weighing accuracy (±0.2%)
- Low dust emission
- Energy-saving
- Smooth material flow
- Excellent for lightweight powder
Technical Features
- Automatic bag pushing
- Inflatable bag design
- Dust recovery system
- Touch screen operation
- International pneumatic components
- PLC automatic control
Performance
| Item | Value |
| Accuracy | ±0.2% |
| Dust Control | Excellent |
| Power Consumption | Very Low |
| Best Material | Tile Adhesive / Wall Putty / Gypsum |

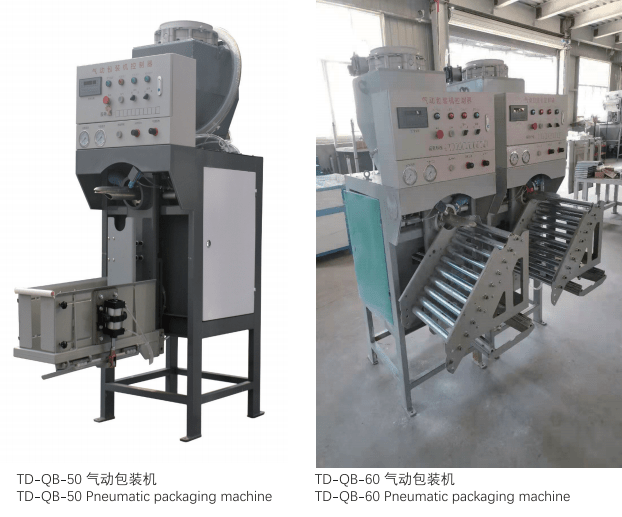

③ Air Blow Valve Bag Packing Machine
High-Speed Packing for Coarse Mortar
The air blow packing machine uses compressed air to transport powder materials directly into the valve bag.
Compared with traditional impeller machines, it provides faster filling speed and cleaner packaging.
Especially suitable for:
- Dry Mortar
- Masonry Mortar
- 2–3 mm Aggregate Mortar
Advantages
- Faster packaging speed
- Lower dust
- Suitable for coarse aggregates
- Stable operation
- Easy cleaning
Typical Performance
| Item | Value |
| Packing Time | ≈13 Seconds/Bag |
| Dust Level | Low |
| Suitable Particle Size | 2–3 mm |
| Air Source | Required |

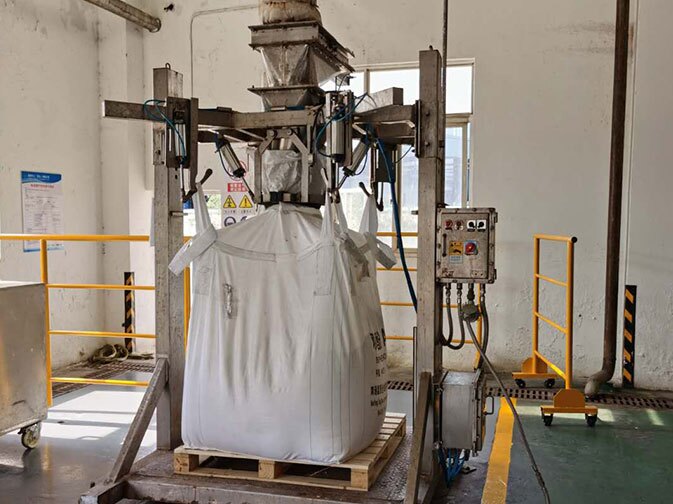

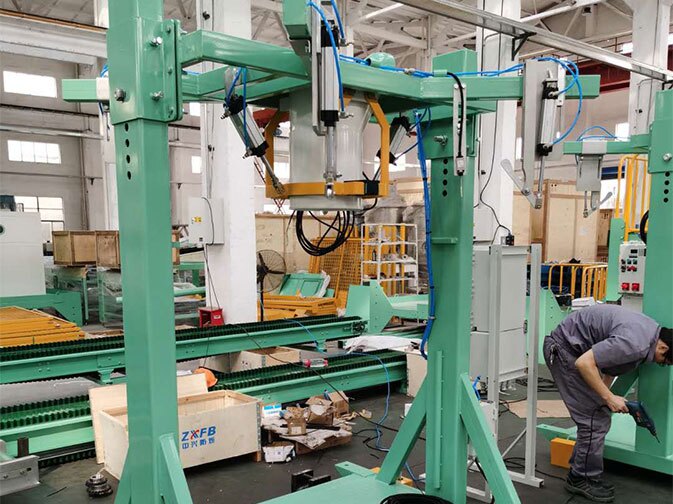

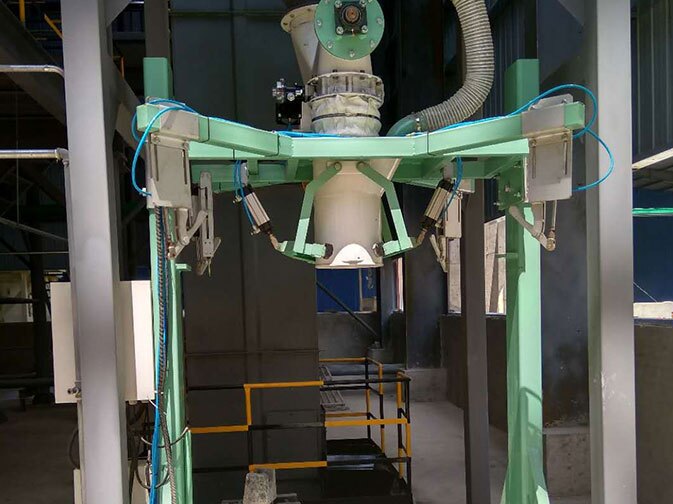

④ Jumbo Bag Packing Machine
Heavy-Duty Bulk Powder Packaging
Designed for bulk powder packaging.
Suitable for: 500 kg, 1000 kg, 1500 kg, 2000 kg
Advantages
- High weighing accuracy
- Automatic clamping
- Easy operation
- Suitable for export materials

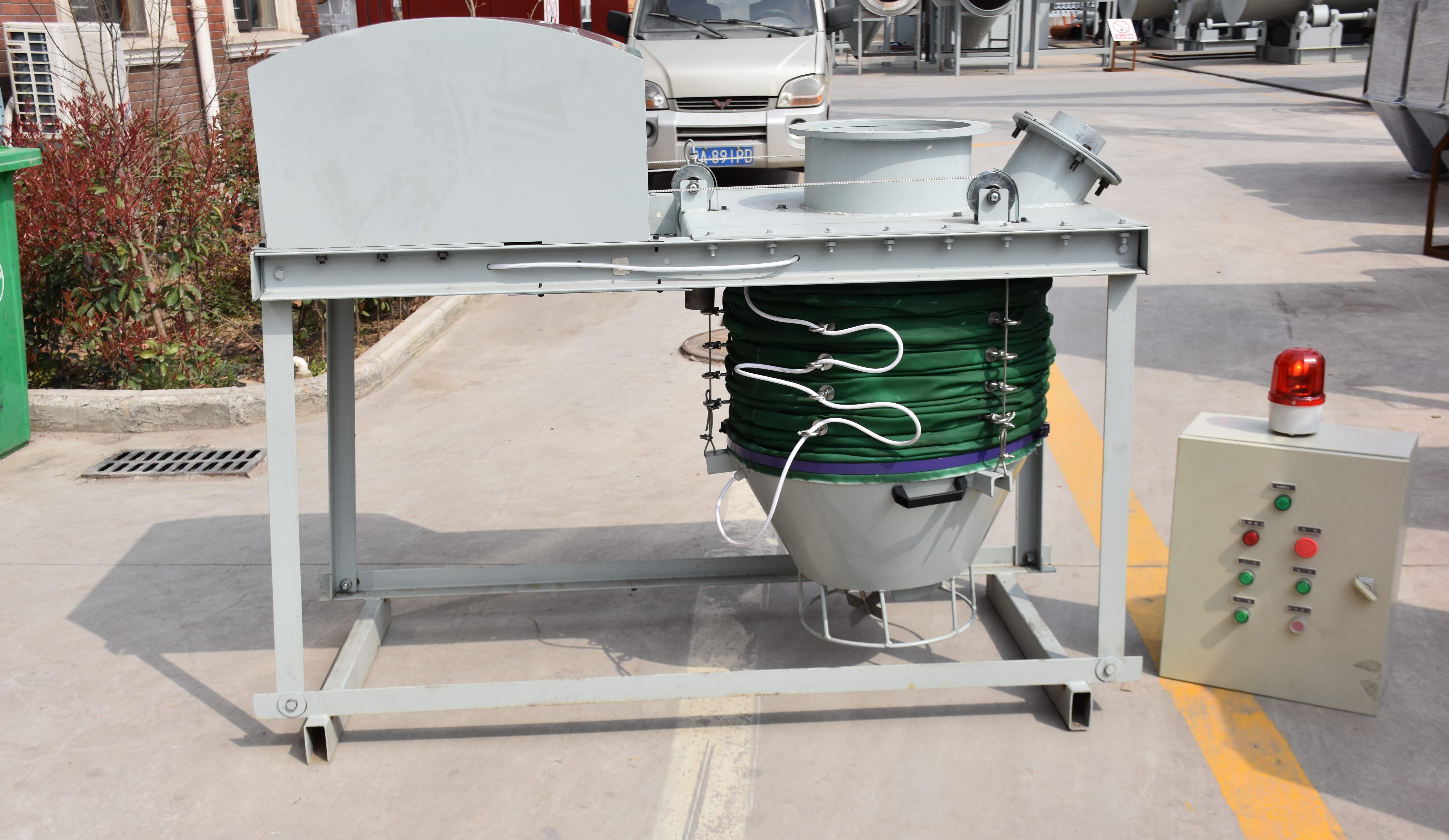

⑤ Bulk Loading Machine
Dust-Free Bulk Truck Loading
Suitable for loading finished mortar directly into bulk trucks.
Features
- Telescopic loading spout
- Remote control
- Dust collection
- Automatic level adjustment
Which Packing Machine Is Right for Your Material?
| Material | Impeller | Air Float | Air Blow | Jumbo Bag |
| Dry Mortar | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐ |
| Tile Adhesive | ⭐⭐⭐ | ⭐⭐⭐⭐⭐ | ⭐⭐⭐ | ⭐⭐⭐ |
| Wall Putty | ⭐⭐ | ⭐⭐⭐⭐⭐ | ⭐⭐⭐ | ⭐⭐⭐ |
| Gypsum Plaster | ⭐⭐ | ⭐⭐⭐⭐⭐ | ⭐⭐⭐ | ⭐⭐⭐ |
| Quartz Sand | ⭐⭐⭐⭐⭐ | ⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐ |
| Fine Powder | ⭐⭐ | ⭐⭐⭐⭐⭐ | ⭐⭐⭐ | ⭐⭐⭐ |
Comparison of Different Packing Machines
| Type | Accuracy | Dust | Speed | Investment | Best Application |
| Impeller | ±0.5% | Medium | ⭐⭐⭐⭐⭐ | Low | Dry Mortar |
| Air Float | ±0.2% | Very Low | ⭐⭐⭐⭐ | High | Tile Adhesive / Wall Putty |
| Air Blow | ±0.3% | Low | ⭐⭐⭐⭐⭐ | Medium | Coarse Mortar |
| Jumbo Bag | ±0.2% | Low | ⭐⭐⭐ | Medium | Bulk Powder |
Typical Applications
Suitable for packaging:
- Dry Mortar
- Tile Adhesive
- Wall Putty
- Skim Coat
- Gypsum Plaster
- Cement Mortar
- Quartz Sand
- Construction Chemicals
- Dry Mix Products
Optional Equipment
Tongding can also provide:
- Automatic Bag Conveyor

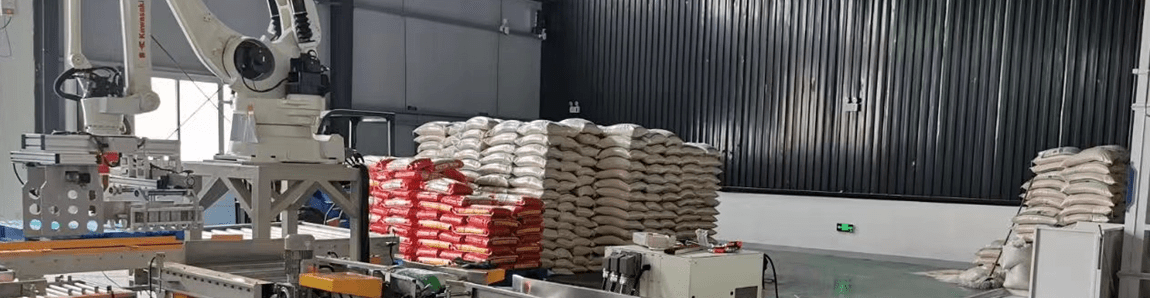

- Robot Palletizer
- Automatic Stretch Wrapping Machine
- Dust Collection System
- Finished Product Conveyor
- Metal Detector
- Check Weigher
Why Choose Tongding?
- 20+ Years of Manufacturing Experience
- Turnkey Dry Mortar Plant Solutions
- Global Installation Service
- PLC Intelligent Control
- Customized Equipment Design
- Professional Engineering Team
- Worldwide Technical Support
Frequently Asked Questions
Which packing machine is best for tile adhesive?
The Air Float Packing Machine is recommended because it provides high accuracy, low dust, and is ideal for fine powders.
Can one machine package different products?
Yes. By adjusting the parameters, the same machine can package tile adhesive, dry mortar, wall putty, gypsum plaster, and other dry powder materials.
What bag sizes are supported?
Standard bag sizes include 10 kg, 20 kg, 25 kg, 40 kg, and 50 kg. Customized sizes are also available.
What weighing accuracy can be achieved?
Depending on the model, the accuracy ranges from ±0.2% to ±0.5%.
Can the packing machine be integrated into an existing production line?
Yes. Tongding packing machines can be integrated with both new and existing dry mortar production lines.
