Quartz sand dryer
Tongding Quartz sand dryer with 4-7× longer wear life, >95% drying uniformity, ≤60°C discharge temperature. Ideal for quartz sand, glass sand, plate sand in glass, foundry, and filtration industries. CE certified, 5-year warranty.
Feature：
- Production capacity: 3–120 tons/hour (customizable)
- Moisture reduction: 10% → 0.5%
- Heat source: Coal/Natural gas/Biomass/Diesel

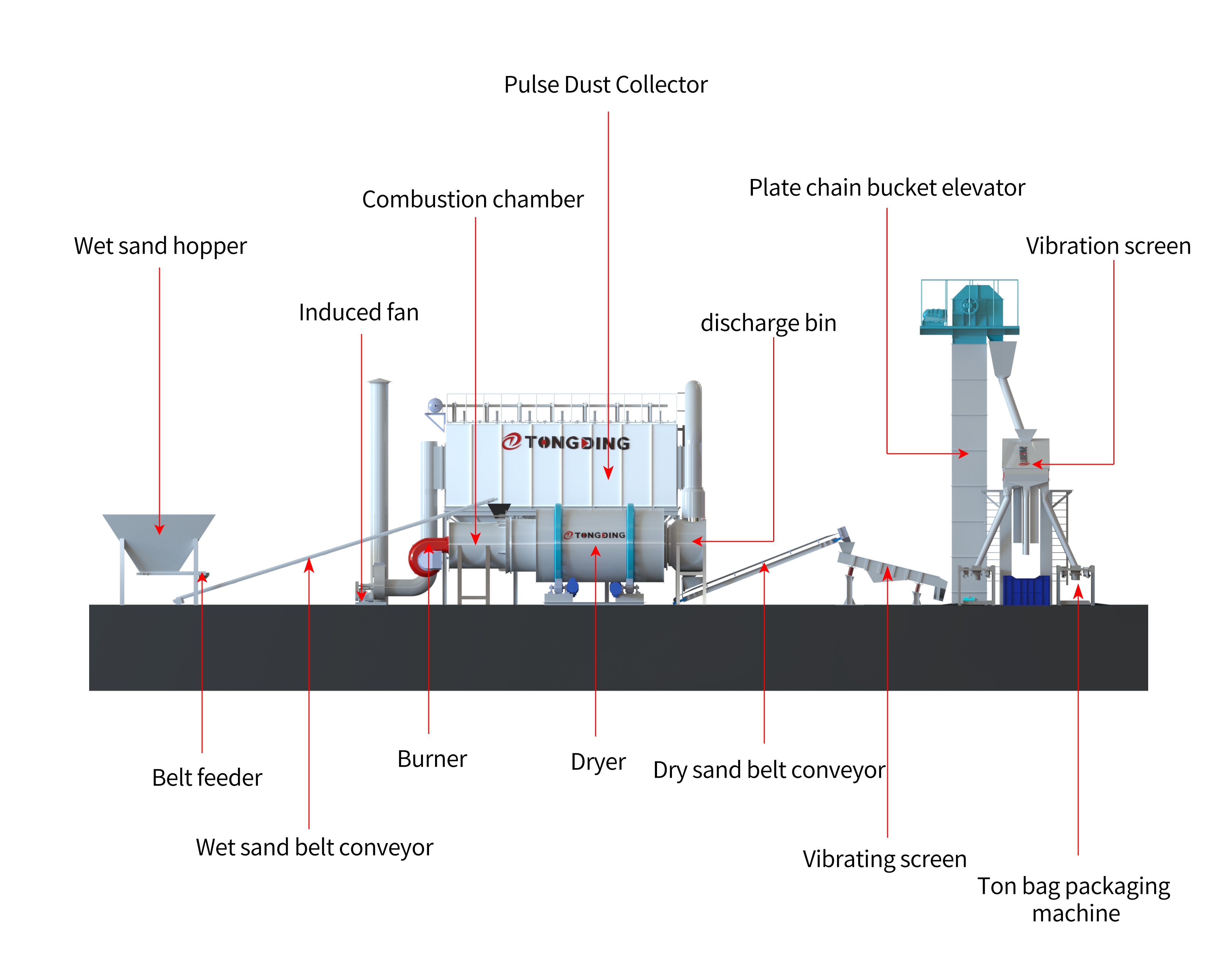

- Powdery materials: (1) Construction sands: river sand, sea sand, yellow sand, quartz sand, foundry sand, slab sand, steel grit, fracturing sand; (2) Mining and mineral materials: tailings sand, copper ore sand, iron ore sand, colored sand, fluorite powder, potassium feldspar powder, sodium feldspar powder; (3) and other construction sands and industrial bulk materials. Process flow: drying → dust removal → screening.
Quartz Sand Dryer—A drying solution specifically designed for glass sand, slab sand, and filter media

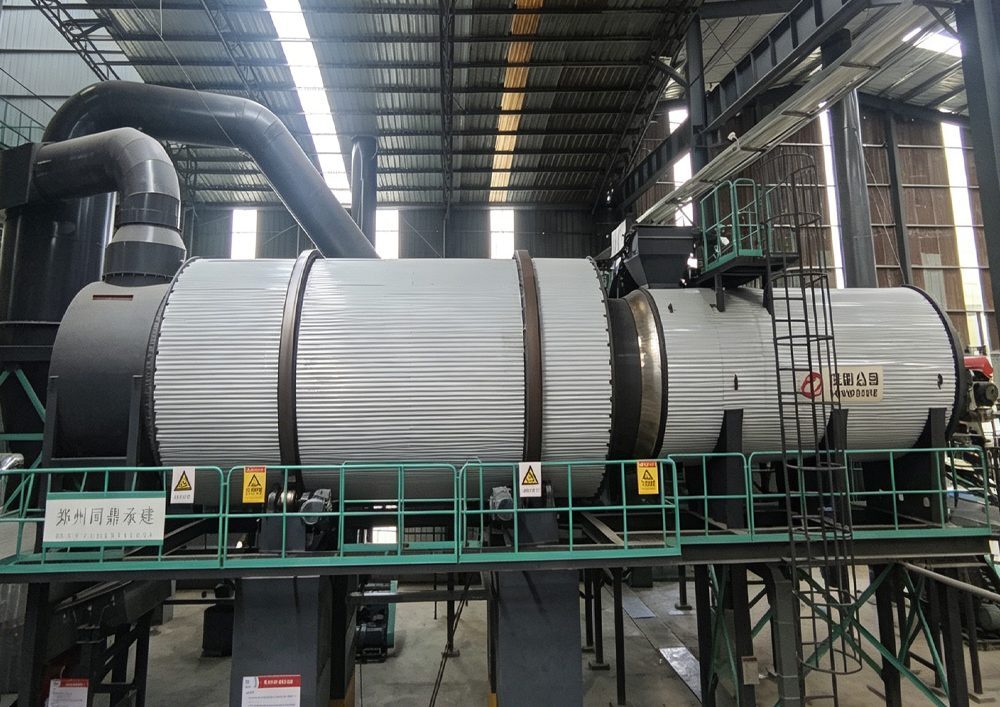

The Tongding quartz sand drying production line is specifically designed for materials characterized by high hardness and chemical stability, including quartz sand, slab sand, and glass sand. It is widely used in sectors such as glass manufacturing, engineered stone production, and water treatment filtration.
Product Overview
Quartz sand, slab sand, and glass sand are characterized by high hardness and chemical stability, making them important raw materials in fields such as glass manufacturing, engineered stone production, and water filtration.
This wet sand has a high moisture content. Traditional drying methods often lead to particle breakage and the excessive loss of fines, thereby compromising the material's purity and integrity. The Tongding quartz sand dryer is specifically designed to handle such demanding materials; it utilizes patented lifting-flight technology to efficiently remove moisture while preserving the particle structure.
The equipment has been exported to Russia, Kazakhstan, Kyrgyzstan, Uzbekistan, and various Southeast Asian countries, serving industries such as glass, engineered stone, casting, and water treatment.
Equipment Advantages
Patented lifting structure—ensures uniform drying without damaging the granules.
The core drying system integrates multiple patented technologies, including multi-bend and serrated lifters. The combined design of these two types of lifters creates a continuous, curtain-like "waterfall" of material within the drum, maximizing heat exchange efficiency between the material and the hot air.
Drying uniformity exceeds 95%, effectively removing moisture while preventing granule breakage caused by excessive tumbling. Loss of fines is minimized, ensuring the cleanliness and integrity of the finished sand.
Highly wear-resistant core components—service life extended by 4 to 7 times.
Key components of the dryer are constructed from high-strength wear-resistant steel plate, delivering 4 to 7 times longer service life than ordinary manganese steel. The support rollers and tire rings are manufactured from high-hardness steel, offering 3 to 5 times greater wear resistance than conventional equipment.
Maintenance is simple – only routine outer-diameter turning is required annually, significantly reducing downtime and maintenance costs.
Precise Temperature Control – Energy Efficient Operation
The combustion chamber is designed for natural gas firing, constructed with high-temperature resistant materials and a specialized structure that withstands temperatures up to 1400°C. Thermal shock resistance is excellent, ensuring long-term stable operation.
Temperature control is precise. Exhaust gas temperature is maintained at approximately 70°C, while the discharged sand temperature remains stable at around 60°C. This minimizes energy waste and eliminates the need for additional cooling before the sand enters subsequent processing stages.
High-Efficiency Induced Draft System – Stable Operation

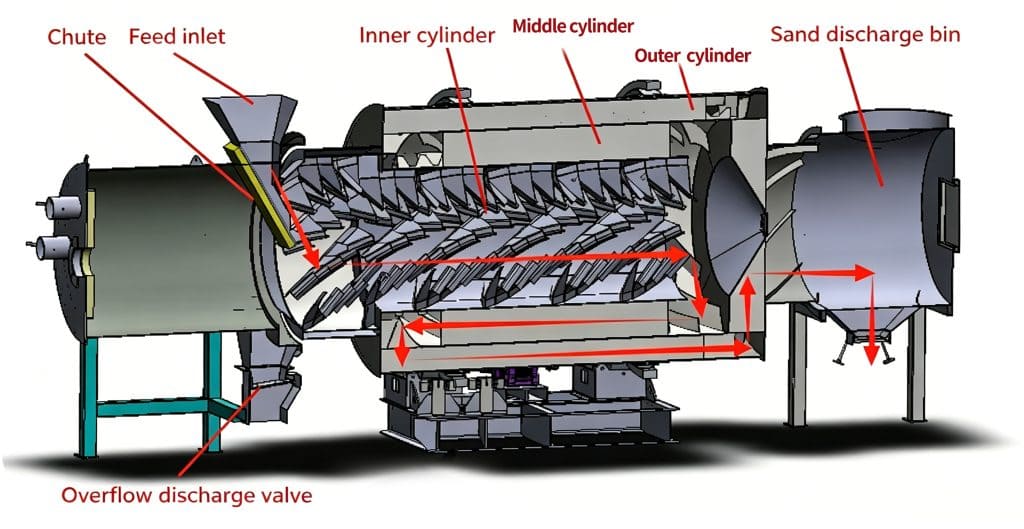

The induced draft system is scientifically designed to ensure smooth ventilation and efficient operation. Vertical plates divide the space between the inner and outer drums into 8 independent drying chambers. Material distribution is uniform, drying is more energy-efficient, and the design prevents heavy-load startup issues during power outages, ensuring equipment safety and stability.
Environmental Compliance & Installation
Dust Emission Below Standards
Equipped with a pulse dust collector, emission concentration is controlled within 10 to 30 mg/Nm³, meeting environmental compliance requirements. Dust is effectively contained during production, ensuring a clean workshop environment and compliance with local environmental regulations.
Stable Foundation Design – Quick Installation
The foundation design uses pre-embedded anchor bolts instead of traditional embedded plates, improving equipment leveling and fixation performance. Combined with a secondary grouting process, overall stability is enhanced, preventing displacement or settlement during long-term operation.
Materials & Applications
The quartz sand dryer is suitable for a wide range of high-hardness, chemically stable materials. Below is a detailed breakdown of applicable materials and their specific industrial applications:
| Material | Key Properties | Application Fields | Specific Uses |
|---|---|---|---|
| Quartz Sand | High SiO₂ content (≥98%) | Glass Manufacturing | Float glass, container glass, fiberglass, optical glass, laboratory glassware |
| Low iron content | Foundry & Casting | Molding sand for ferrous and non-ferrous metal casting, core sand, investment casting | |
| Uniform particle size | Water Treatment | Filter media for drinking water treatment, wastewater filtration, swimming pool filtration, desalination pre-treatment | |
| High hardness (Mohs 7) | Oil & Gas | Frac sand (proppant) for hydraulic fracturing, well casing sand | |
| Chemical stability | Specialty Applications | Electronics-grade quartz, high-purity quartz for semiconductors, quartz crucibles | |
| Plate Sand | Consistent grading | Engineered Stone | Quartz surfacing, engineered stone slabs, kitchen countertops, vanity tops, flooring tiles |
| Low impurity | Building Materials | Terrazzo flooring, precast concrete, decorative aggregates, exposed aggregate finishes | |
| Angular particle shape | Industrial Flooring | Epoxy flooring aggregates, polyurethane flooring systems, anti-slip flooring | |
| Glass Sand | High purity (>99%) | Container Glass | Glass bottles, jars, food and beverage containers, pharmaceutical vials |
| Low moisture | Flat Glass | Architectural glass, automotive glass, solar glass, display glass (LCD/OLED) | |
| Optimal grain size | Specialty Glass | Labware, lighting glass, fiberglass insulation, glass microspheres for reflective materials | |
| Silica Sand | High hardness, chemical inertness | Filtration & Abrasives | Sand blasting media, abrasive blasting, concrete surface preparation, roofing granules |
After drying, finished sand moisture is consistently maintained at 0.5% or below, meeting the strict raw material standards for glass, engineered stone, foundry, and water treatment applications.
Service & Commitment
Tongding develops drying solutions tailored to each customer's actual materials, output requirements, site conditions, and heat source configurations. We do not overstate equipment capacity. We do not offer solutions that look good on paper but fail in practice. Because we understand that customers are not buying a dryer – they are buying a production system that consistently generates profit.
Overseas Service Support
Leveraging the Belt and Road logistics network, equipment can be shipped in complete sets to Central Asia, Southeast Asia, and other regions. The manufacturer provides overseas installation guidance, operational training, and ongoing technical support to help customers start production quickly and consistently produce dry sand that meets required standards.
Countries with Successful Installations
Tongding quartz sand dryers are serving customers across multiple regions:
- Central Asia: Russia, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan
- Southeast Asia: Indonesia, Thailand, Vietnam, Malaysia, Philippines
- South Asia: Pakistan, India, Bangladesh
- Middle East: Saudi Arabia, UAE, Oman
- Africa: Nigeria, South Africa, Algeria
- South America: Chile, Peru, Brazil
Each installation is supported by remote diagnostics and responsive spare parts supply, ensuring minimal downtime and maximum productivity.
Ready to Optimize Your Sand Drying Process?
Whether you are drying quartz sand for glass production, slab sand for engineered stone, or filter media for water treatment, Tongding offers tailored drying solutions backed by guaranteed actual production capacities and genuine energy-saving performance.
* Free equipment selection reports, customized layout drawings, and budget estimates provided within 24 hours.
Applicable Materials
Facturing Sand
Glass Sand
Iron Powder
Quartz Sand
Titanium Powder
Machine-made Sand
Slag
Stone Powder
River Sand
Specifications
| Model | Power (kW) | Production Capacity (t/h) | Rotational Speed (rpm) | Installation Angle | Final Moisture Content | Heat Supply Mode |
| HG1625 | 4KW | 3-8T/H | 9 | 诊所 | ≤0.5％ | 1) 柴火 2) 煤粉 3) 柴油 4) 天然气 5) 非碳化生物质燃料 6) 碳化生物质燃料 |
| HG2240 | 7.5KW | 10-15T/H | 9 | |||
| HG2250 | 7.5KW | 20T/H | 9 | |||
| HG2958 | 5.5KW*4 | 30T/H | 7 | |||
| HG3270 | 11KW*4 | 60T/H | 7 | |||
| HG3890 | 15KW*4 | 100T/H | 7 |
