What Is a Sand Dryer and How Does It Work?
Sand plays an important role in construction, dry mortar production, mining, glass manufacturing, and many other industrial sectors. However, raw sand usually contains moisture after washing, transportation, or natural storage. Excess moisture affects material handling, batching accuracy, storage stability, and final product quality.
A sand dryer removes moisture from wet sand and produces dry material suitable for industrial use. Among different drying systems, the rotary sand dryer is one of the most widely used solutions because of its continuous operation, large processing capacity, and stable drying performance.
This article explains what a sand dryer is, why sand drying matters, how a rotary sand dryer works, and what factors should be considered when selecting sand drying equipment.
Why Does Sand Need to Be Dried?
Wet sand creates several production problems in industrial applications. Moisture control is necessary for stable processing and product consistency.
Poor Material Flow
Wet sand tends to stick together during conveying and storage. Material buildup inside hoppers, silos, and conveyors can interrupt production and increase maintenance work.
After drying, sand becomes free-flowing and easier to transport through mechanical conveying systems.
Reduced Concrete and Mortar Quality
In concrete batching and dry mortar production, unstable sand moisture changes the water ratio inside the mixture.
This may lead to:
- Uneven mixing
- Reduced bonding strength
- Surface cracking
- Lower compressive strength
Dry sand allows more accurate ingredient control during production.
Increased Transportation Costs
Moisture adds unnecessary weight during transportation. Large quantities of wet sand increase fuel consumption and shipping expenses.
Drying reduces the total transport weight and improves storage efficiency.
Industrial Processing Requirements
Some industries require very low sand moisture levels.
Examples include:
- Silica sand processing
- Foundry casting
- Frac sand production
- Glass manufacturing
- Ceramic production
Foundry sand must remain dry before molten metal pouring. Frac sand also requires low moisture for storage and pneumatic conveying systems.
What Is a Sand Dryer?
A sand dryer is industrial drying equipment designed to remove moisture from wet sand through heat transfer and continuous material movement.
Most industrial sand drying systems use a rotary drum dryer structure. Inside the rotating drum, wet sand contacts hot air while internal lifting plates continuously raise and scatter the material. This process accelerates moisture evaporation and improves drying efficiency.
A sand dryer can process many types of materials, including:
- River sand
- Silica sand
- Sea sand
- Quartz sand
- Mortar sand
- Construction sand
- Manufactured sand (M-sand)
- Foundry sand
- Frac sand
Depending on production requirements, the final moisture content can usually be reduced to 0.5%–1%.
Main Components of a Sand Dryer
A complete sand drying plant contains several systems working together to achieve continuous drying performance.

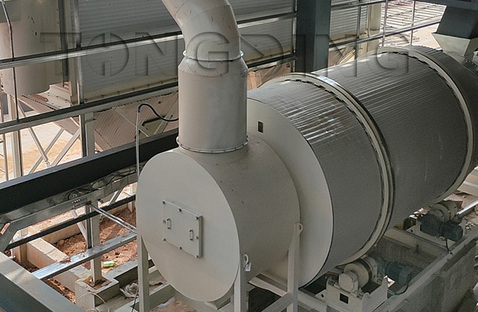

Rotary Drum
The rotary drum is the core component of the drying system.
The drum rotates slowly while sand moves from the feeding end toward the discharge end. Internal lifting plates scatter the material through the hot air stream for uniform drying.
Single drum dryers are commonly used because of:
- Simple structure
- Stable operation
- Easy maintenance
- Large capacity

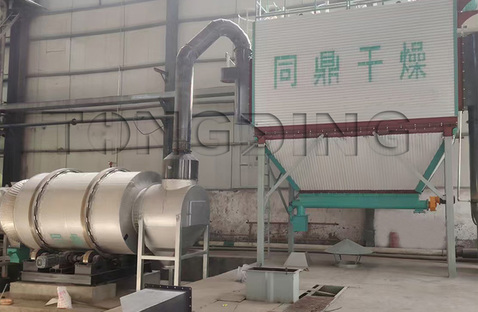

Some compact plants use triple-pass drum dryers to reduce installation space.
Feeding System
The feeding system transports wet sand into the dryer at a controlled rate.
Typical equipment includes:
- Belt conveyors
- Screw feeders
- Vibrating feeders
- Storage hoppers
Stable feeding improves drying consistency and prevents material blockage.
Burner and Heating System
The burner generates the hot air required for moisture evaporation.
Common fuel options include:
- Natural gas
- Diesel
- Coal
- Biomass fuel
Direct heating systems are widely used in industrial sand drying because of higher thermal efficiency.
Dust Collection System
Dust is generated during material lifting and hot air circulation.
Dust collection equipment helps maintain a clean production environment and reduces emissions.
Common dust removal equipment includes:
- Cyclone separators
- Pulse bag filters
- Induced draft fans
Industrial baghouse systems can achieve dust collection efficiency above 99%.
PLC Control System
Modern sand drying plants often use automatic PLC control systems.
The control system monitors:
- Drum temperature
- Exhaust temperature
- Burner operation
- Drum speed
- Material moisture
- Airflow volume
Automatic adjustment improves fuel efficiency and production stability.
How Does a Sand Dryer Work?
The sand drying process follows a continuous sequence from feeding to discharge.
Step 1: Feeding Wet Sand
Wet sand enters the rotary drum through the feeding system.
The feeding speed must remain stable to maintain consistent drying results.
Step 2: Heating the Dryer
The burner produces hot air that flows through the rotary drum.
Depending on the system design, airflow may move in the same direction as the material or in the opposite direction.
Step 3: Lifting and Cascading
As the drum rotates, internal lifting plates raise and scatter the sand repeatedly.
This cascading movement increases the contact area between hot air and wet material.
Uniform heat distribution improves drying efficiency and prevents uneven moisture reduction.
Step 4: Moisture Evaporation
Hot air transfers thermal energy to the wet sand particles.
The moisture gradually evaporates while the material moves through the drum.
Typical moisture reduction:
- Initial moisture: 5%–25%
- Final moisture: 0.5%–1%
Some silica sand applications may require even lower final moisture.
Step 5: Discharging Dry Sand
After drying, the finished sand exits through the discharge section.
The dried material can then move to:
- Storage silos
- Packing systems
- Vibrating screens
- Dry mortar production lines
- Concrete batching plants
Types of Sand That Can Be Dried
A rotary sand dryer can process many kinds of granular materials.
| Material Type | Typical Application |
|---|---|
| River Sand | Construction and concrete |
| Silica Sand | Glass and mineral processing |
| Mortar Sand | Dry mortar production |
| Frac Sand | Oil and gas industry |
| Foundry Sand | Metal casting |
| Quartz Sand | Industrial minerals |
| Sea Sand | Construction processing |
| Manufactured Sand | Aggregate production |
Different materials may require different drying temperatures and residence times.
Sand Dryer Technical Parameters
The actual configuration depends on production capacity, moisture level, and fuel type.
| Parameter | Typical Range |
|---|---|
| Capacity | 3–80 TPH |
| Final Moisture | 0.5%–1% |
| Drum Diameter | 1.2–3.6 m |
| Drum Length | 8–28 m |
| Heat Source | Gas, diesel, coal, biomass |
| Heating Type | Direct or indirect |
| Inlet Temperature | 80°C–800°C |
| Control System | Manual or PLC automatic |
Common Applications of Sand Dryers
Dry Mortar Plants
Dry mortar production requires low-moisture sand for accurate mixing and stable product quality.
Sand dryers are widely used in tile adhesive, plaster mortar, and putty powder production lines.
Concrete Batching Plants
Concrete plants use dry sand to improve weighing precision and reduce moisture variation during mixing.
Silica Sand Processing
Silica sand drying systems are commonly used in:
- Glass manufacturing
- Quartz processing
- Ceramic production
- Solar glass production
Foundry Industry
Foundry sand must remain dry before mold preparation and metal pouring operations.
Moisture inside casting molds may create steam and affect casting quality.
Frac Sand Processing
The oil and gas industry requires dry frac sand for hydraulic fracturing operations.
Low moisture improves storage, transportation, and pneumatic conveying performance.

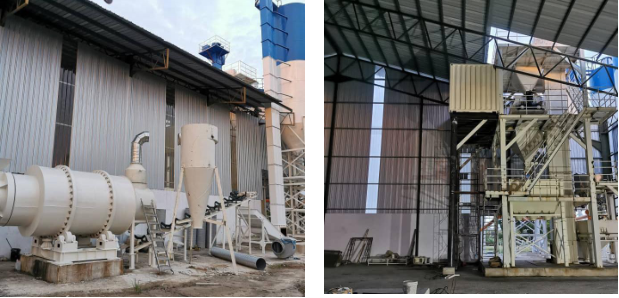

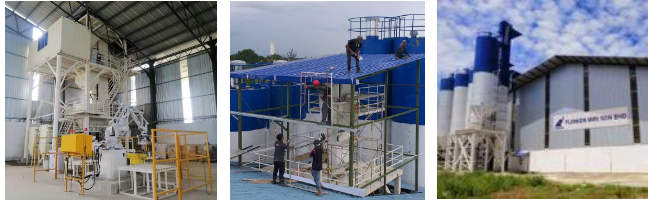

Customer Case: Dry Mortar Production Line in Meri, Malaysia
Project Background
Tongding installed a complete dry mixed mortar production line for a customer in Meri, Malaysia. The customer needed a stable sand drying and mortar mixing system for large-scale dry mortar production.
High sand moisture affected mixing consistency and reduced production efficiency. The customer required a complete solution that could support continuous production and stable final product quality.
Installed Equipment
- TDSJ-4 Dry Mortar Mix Plant, 30–60 T/H
- TDS6215 Sand Dryer, 10–15 T/H
- Automatic conveying system
- Dust collection system
- PLC automatic control system
Final Results
After installation, the sand moisture was reduced to the required production level for dry mortar manufacturing.
The complete Tongding production line improved mixing stability, reduced manual operation, and increased production efficiency. The customer achieved continuous dry mortar production with more stable material quality and lower operating costs.
How to Choose the Right Sand Dryer
Selecting suitable sand drying equipment depends on several production factors.
Material Moisture
Higher moisture materials require larger drying capacity and stronger heating systems.
Slurry materials may require pre-dewatering equipment.
Production Capacity
The dryer capacity should match the entire production line to avoid bottlenecks.
Fuel Type
Fuel cost directly affects long-term operating expenses.
Natural gas systems are cleaner, while coal and biomass systems may reduce fuel costs in some regions.
Environmental Requirements
Dust emissions and exhaust systems must comply with local environmental regulations.
Many industrial plants require high-efficiency dust collection systems.
Plant Layout
Installation space affects dryer design selection.
Triple-pass dryers are often used in compact production sites.
FAQ About Sand Dryers
A sand dryer removes moisture from wet sand for industrial applications such as concrete production, dry mortar manufacturing, silica sand processing, and foundry operations.
Most rotary sand dryers reduce moisture to approximately 0.5%–1%.
Common fuels include natural gas, diesel, coal, and biomass fuel.
Single drum dryers have a simpler structure and are suitable for large-capacity production. Triple-pass dryers reduce installation space and improve heat utilization in compact plants.
Yes. Some silica sand drying plants use pre-dewatering equipment before rotary drying to handle slurry materials with high moisture content.
The drying time depends on material moisture, drum size, temperature, and production capacity.
Conclusion
A sand dryer is an important piece of equipment in construction material production, mining, and industrial mineral processing. By removing moisture from wet sand, the system improves material handling, batching accuracy, storage stability, and downstream processing efficiency.
Rotary sand dryers are widely used because of their continuous operation, large processing capacity, and reliable drying performance. With proper equipment configuration, industrial plants can achieve stable moisture control, lower operating costs, and more efficient production.
