What Is a Dry Mortar Production Line?
Dry Mortar Production Line
Automatic Dry Mix Mortar Plant Solution for Industrial Manufacturing
Complete turnkey dry mortar production systems for wall putty, tile adhesive, masonry mortar, plaster mortar, skim coat, self-leveling mortar, and special dry mix materials.
What Is a Dry Mortar Production Line?
A dry mortar production line is a fully automated industrial system designed for producing dry mix mortar products through material storage, conveying, drying, screening, batching, mixing, packaging, and dust collection processes.
The system combines multiple machines into one integrated production solution, allowing manufacturers to produce consistent, high-quality dry mortar materials with high efficiency and low labor cost.
Modern dry mortar plants are widely used in:
- Construction material factories
- Wall putty manufacturing
- Tile adhesive production
- Cement-based mortar production
- Special dry mix material processing
- Industrial building material plants
Tongding Machinery provides customized dry mortar production line solutions based on:
- Production capacity
- Factory layout
- Raw material type
- Automation requirements
- Local environmental standards
Common Problems in Traditional Mortar Production
Many traditional mortar factories still rely on manual batching and semi-automatic mixing systems. These production methods often lead to unstable product quality and high operating costs.
Main Industry Challenges
- Inconsistent material ratio accuracy
- Low production efficiency
- High labor dependence
- Dust pollution inside workshops
- High moisture content in sand materials
- Uneven mixing quality
- Material waste during production
- Difficulty expanding production capacity
As construction material quality standards continue increasing, manufacturers require automated production systems capable of stable and continuous operation.
Complete Dry Mortar Production Solution
Tongding dry mortar production lines integrate drying, conveying, storage, batching, mixing, dust removal, and packaging into one automated production system.
The complete production process improves:
- Production efficiency
- Mixing uniformity
- Final product quality
- Factory automation level
- Environmental protection performance
- Energy utilization efficiency
Dry Mortar Production Process
Main Production Workflow
- Raw material storage
- Wet sand conveying
- Rotary sand drying process
- Sand screening and lifting
- Finished sand storage
- Cement and powder batching
- Additive dosing system
- Dual axis gravity-free mixing
- Finished mortar storage
- Automatic packaging system
- Palletizing and transportation
The entire production process is controlled through an intelligent PLC automation system to ensure stable operation and precise batching accuracy.
Main Equipment of Dry Mortar Production Line
1. Rotary Sand Dryer
The rotary sand dryer removes moisture from wet sand before mixing. Stable sand moisture is critical for producing high-quality dry mortar products.
- Final moisture can reach below 1%
- Suitable for river sand, silica sand, and manufactured sand
- Natural gas, coal, diesel, or biomass fuel options
- Continuous industrial drying operation

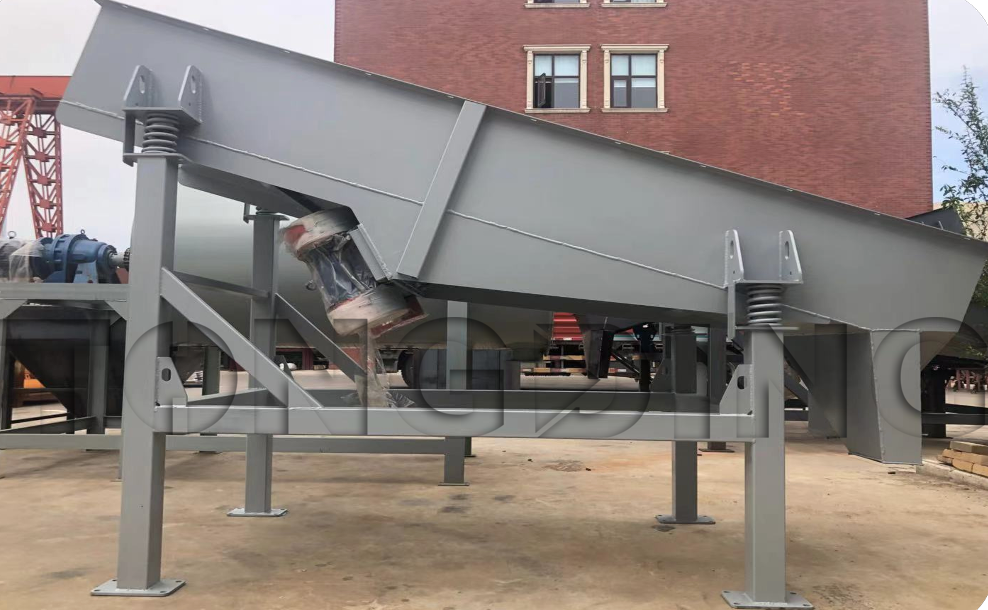

2. Screening System
The screening machine separates oversized particles and ensures uniform sand size before entering the batching system.

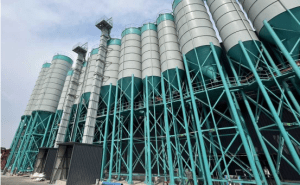

3. Storage Silos
Storage silos are used for:
- Dry sand storage
- Cement storage
- Fly ash storage
- Additive storage
4. Automatic Batching System
The batching system automatically controls raw material proportion according to the production formula.
This improves:
- Product consistency
- Mixing precision
- Production efficiency
5. Dual Axis Gravity-Free Mixer
The dual axis gravity-free mixer is the core equipment of the dry mortar production line.
The mixer uses high-speed counter-rotating shafts to create a strong convection mixing effect, ensuring rapid and uniform mixing of powder materials.
Advantages of the Dual Axis Gravity-Free Mixer
- High mixing uniformity
- Short mixing cycle
- Low material residue
- Stable operation
- Suitable for multiple mortar formulations
- Wear-resistant alloy mixing blades
6. Dust Collection System
Pulse bag dust collectors reduce dust emissions during:
- Material conveying
- Mixing
- Packaging
- Storage
This helps factories comply with environmental protection standards.
7. Automatic Packaging System
The packaging machine automatically fills finished mortar into bags with stable weighing accuracy and high packaging efficiency.
Applications of Dry Mortar Production Line
The production line is suitable for manufacturing:
- Tile adhesive
- Wall putty
- Skim coat mortar
- Masonry mortar
- Plaster mortar
- Self-leveling mortar
- Insulation mortar
- Repair mortar
- Waterproof mortar
- Special construction materials
Production Capacity Options
| Model | Capacity | Automation Level | Application |
|---|---|---|---|
| TDSJ-4 | 30-60 T/H | Fully Automatic | Medium and Large Mortar Plants |
| Customized Plant | 5-100 T/H | Semi or Fully Automatic | Customized Factory Solutions |
Project Case in Miri, Malaysia
Tongding Machinery successfully installed a dry mortar production line in Miri, Malaysia.
Project Information
- Location: Miri, Malaysia
- Production Line: TDSJ-4 Dry Mortar Mixing Plant
- Capacity: 30-60 T/H
- Drying Equipment: TDS6215 Sand Dryer
- Drying Capacity: 10-15 T/H
Customer Requirements
- Stable mortar quality
- Automated production
- Lower labor cost
- Improved production efficiency
- Environmental dust control
Project Results
- Stable continuous operation
- Improved mixing consistency
- Reduced manual labor
- Lower production loss
- Efficient sand drying performance
Why Choose Tongding Dry Mortar Production Line?
- Customized turnkey solutions
- Professional engineering design
- Stable production performance
- Intelligent PLC control system
- Energy-saving drying technology
- Strong mixing uniformity
- Low maintenance cost
- Environmental dust removal system
- Global installation experience
- Technical support and installation service
Frequently Asked Questions
What materials are used in dry mortar production?
Common raw materials include sand, cement, fly ash, calcium carbonate, additives, and chemical powders.
What is the capacity of a dry mortar production line?
Production capacity usually ranges from 5 T/H to 100 T/H depending on customer requirements.
Why is sand drying necessary?
Wet sand affects mixing quality and mortar performance. Dry sand ensures stable product quality and accurate batching.
Can the production line be customized?
Yes. Tongding Machinery provides customized layouts, capacity configurations, and automation solutions according to factory requirements.
What fuel can be used for the sand dryer?
Natural gas, coal, diesel, and biomass fuels are all available depending on local energy conditions.
Get a Customized Dry Mortar Production Solution
Looking for a reliable dry mortar production line manufacturer?
Contact Tongding Machinery for customized plant design, equipment selection, technical support, and project quotation.
Capacity customization available from 5-100 T/H.
