Triple Cylinder Rotary Dryer In China
Triple Cylinder Rotary Dryer In China
High-efficiency industrial drying solution for sand, minerals, and granular materials — with 5-year warranty and CE certification.
Product Overview

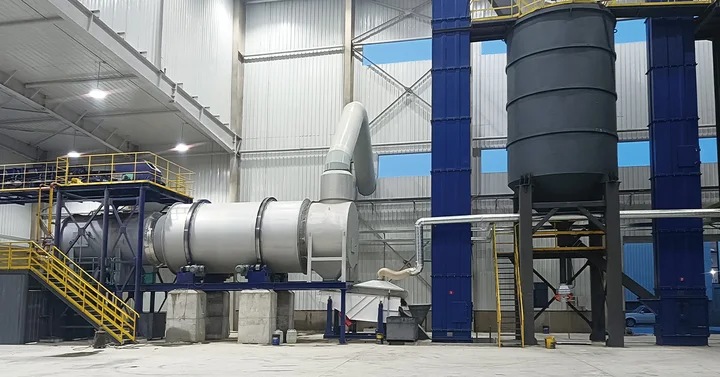

The Triple Cylinder Rotary Dryer is a high-efficiency industrial drying solution designed for sand, minerals, and granular materials. It consists of three concentric cylinders (inner, middle, and outer) that work together to maximize heat exchange and reduce energy consumption.
Developed by Tongding’s R&D team with 26 invention patents, this dryer is widely used in building materials, metallurgy, mining, petrochemical, and foundry industries for drying materials such as mortar sand, fracturing sand, foundry sand, plate sand, glass sand, and descaling sand.
Compared with traditional single-drum dryers, the triple-pass design delivers 40% higher thermal efficiency, requires 60% less floor space, and achieves final moisture content below 0.5%.
Technical Specifications
| Model | HG2240 | HG2958 | HG3270 | HG3890 | HG4512 |
|---|---|---|---|---|---|
| Overall Size (m) | 2.2×4 | 2.9×5.8 | 3.2×7 | 3.8×9 | 4.5×12 |
| Drum Volume (m³) | 9.1 | 23.8 | 35.4 | 65.3 | 125.6 |
| Rotary Speed (r/min) | 8–10 | 6–8 | 6–8 | 4–6 | 4–6 |
| Power (kW) | 7.5 | 22 | 44 | 60 | 75 |
| Capacity (TPH) | 3–5 | 5–8 | 10–15 | 20–25 | 30–40 |
| Final Moisture | ≤0.5% | ||||
Key Advantages
Patent-Protected Design Innovations
- Multi-bend sand lifting plates: Create a waterfall-like material curtain for maximum heat exchange (Patent ZL 2017 1 1292672.4, ZL 2017 2 1697400.8)
- Serrated sand lifting plates: Increase contact area for secondary drying (Patent ZL 2017 1 1292674.3, ZL 2017 2 1697127.9)
- Large double-layer kiln head: Anti-backflow design prevents material blockage and heat loss (Patent ZL 2018 1 1513638.X, ZL 2018 2 2074629.7)
- Forged running belt: Dense structure, no casting defects, longer service life
- Heavy hammer discharge valve: Reduces air loss and increases output (Patent ZL 2018 1 1513639.4)
- Combined sand lifting plate inner cylinder: Optimized for uniform drying (Patent ZL 2017 1 1292967.1, ZL 2017 2 1697016.8)
- Anti-clogging self-cleaning sand flow channel: Prevents material adhesion and ensures consistent flow (Patent ZL 2017 1 1292651.2, ZL 2017 2 1697357.5)
Flexible Fuel Options
The drying system supports multiple heat sources. We recommend the most cost-effective burner based on your local fuel availability:
- Diesel / Natural Gas / LPG – Clean and efficient, ideal for environmental regulations
- Biomass – Suitable for wood chips, building templates, agricultural residues
- Heavy Oil – Cost-effective for large-scale operations
- Coal – Where permitted, with proper emission control
What Our Customers Care About
Quality Assurance
Every dryer is manufactured under ISO 9001 quality management and CE certified. Each unit undergoes factory testing before shipment, including:
- Drum concentricity and parallelism inspection
- Running belt and roller precision alignment
- Sealing system pressure and leakage test
- Electrical control system function verification
We stand behind our equipment with a 5-year warranty on major components. If the dryer fails to meet the specified moisture and capacity requirements, we offer a full refund. This is our commitment to quality and your peace of mind.
Installation & Support
Tongding provides complete turnkey service:
- Factory layout design and foundation planning
- Equipment manufacturing and quality inspection
- Overseas installation by experienced engineers (24-hour response for Asia region)
- Commissioning and trial production supervision
- Operator training and formula guidance
- Spare parts supply and remote technical support
Delivery
Standard lead time: 28 days depending on configuration. Before production begins, we provide detailed layout drawings and installation guidance to help shorten your project schedule.
How We Compare to Competitors
| Feature | Tongding Triple-Cylinder Dryer | Conventional Dryer |
|---|---|---|
| Thermal Efficiency | 40% higher | Standard |
| Floor Space | 60% less | Large footprint |
| Component Life | 3-4× longer (forged/patented design) | Standard casting |
| Final Moisture | ≤0.5% | 1.0% – 3.0% |
| Patents | 26+ invention patents | Limited or none |
| Warranty | 5 years | 12–24 months |
| Refund Policy | Money-back guarantee | Not offered |
| Certification | CE, ISO 9001 | Varies |
Applications
Our triple-cylinder rotary dryers are used in:
- Building materials: Dry mortar sand, tile adhesive sand, plaster sand
- Petroleum industry: Fracturing sand (proppant) drying
- Foundry: Casting sand drying
- Glass industry: Glass sand and photovoltaic sand
- Mining: Mineral tailings, slag, iron powder
- Environmental protection: Solid waste treatment, sludge drying
- Chemical industry: Carbon black, industrial salt, and other granular materials
Why Tongding?
- Founded in 2010 – Over 15 years of manufacturing experience
- Two production bases – Yulong and Wulong, total area 60+ acres, 40,000+ m² floor space
- National High-Tech Enterprise – Recognized as “Specialized and Sophisticated” enterprise in Henan Province
- Intellectual property leader – 26 invention patents, 77 utility patents, 8 design patents, 12 software copyrights
- Sand dryer industry standard maker – Setting technical benchmarks
- Exported to 60+ countries – Projects delivered worldwide
- 3 R&D teams – Specializing in drying, mixing, and automation
Ready to Start Your Drying Project?
Whether you need a 5 TPH startup dryer or a 100+ TPH industrial system, our engineers will customize the equipment configuration based on your capacity, raw materials, workshop space, and budget.
📧 admin@tongdingmachine.com | 📱 +86-13673306161
* Free equipment selection report, customized layout drawing, and budget estimate within 24 hours
