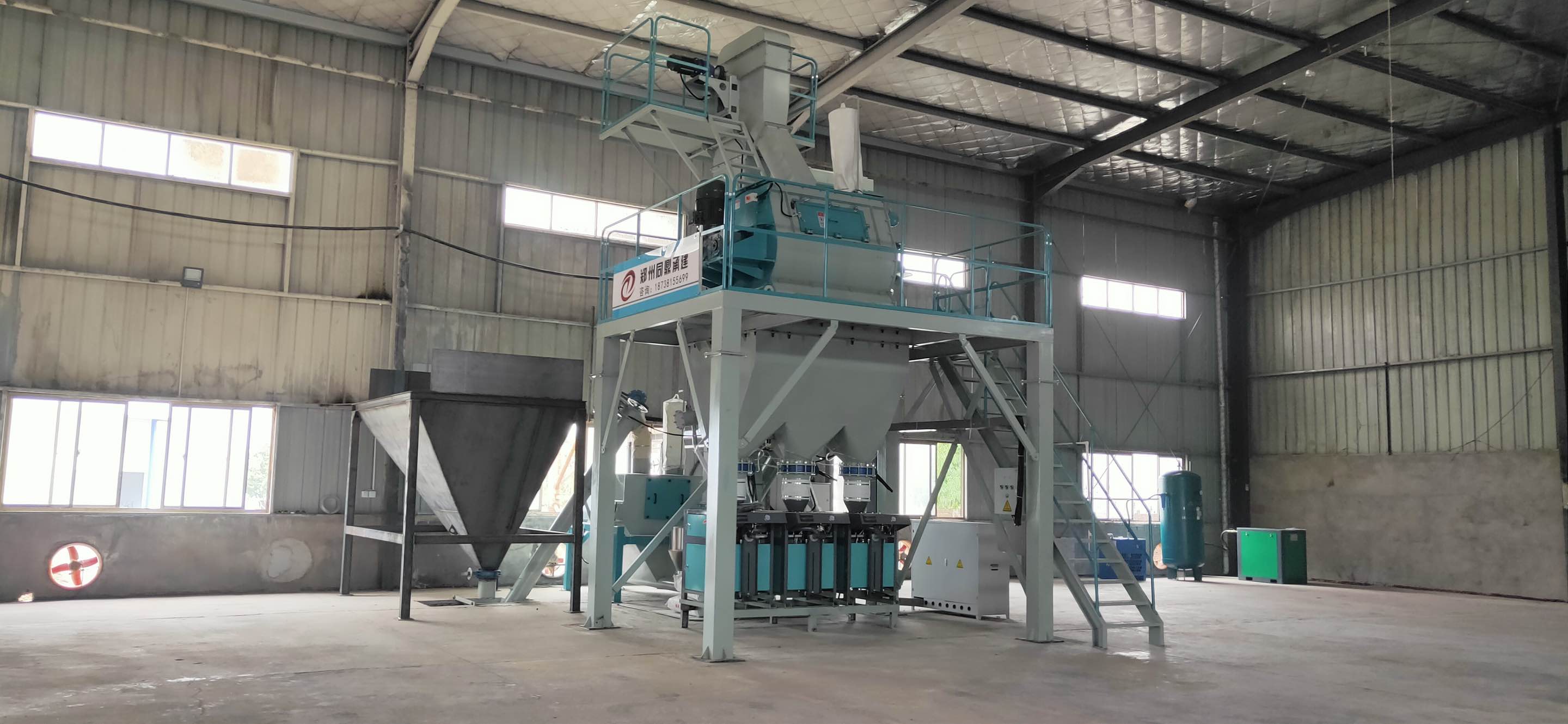

Twin Shaft Paddle Mixer In China
Twin Shaft Paddle Mixer In China
Non-gravity double shaft paddle mixer for dry mortar, tile adhesive, and powder blending — with 5-year warranty and CE certification.
Product Overview
The Twin Shaft Paddle Mixer in China (also known as the Non-Gravity Double Shaft Paddle Mixer) is a high-efficiency mixing solution designed for dry mortar, tile adhesive, wall putty, and powder blending applications. With mixing uniformity above 99% and fast 3-5 minute cycles, it is the preferred choice for medium and large dry mortar production plants.
Unlike traditional ribbon mixers, the twin shaft design creates a fluidized mixing zone where materials are suspended in the air and mixed rapidly. This eliminates dead corners and ensures even dispersion of micro-additives such as HPMC, RDP, cellulose ether, and fibers.
Technical Specifications
| Model | WSZ2 | WSZ3 | WSZ4 | WSZ6 | WSZ10 |
|---|---|---|---|---|---|
| Total Volume (m³) | 2 | 3 | 4 | 6 | 10 |
| Loading Coefficient | 0.4–0.6 | ||||
| Rotary Speed (r/min) | 43 | 43 | 29 | 29 | 29 |
| Power (kW) | 18.5 | 22 | 30 | 45 | 55 |
| Mixing Cycle | 3–5 minutes | ||||
| Mixing Uniformity | ≥99% | ||||
| Dimensions (mm) | 2460×1640×1520 | 2850×1640×1520 | 2800×2110×1950 | 3130×2470×2120 | 3600×3000×2510 |
Key Advantages
Patent-Protected Design Features
- Patented shaft end seal (Patent ZL 2018 2 2074615.5): Water-based graphite packing with silicone core ensures zero powder leakage — a common failure point in other mixers.
- Large-opening discharge door with automatic angle adjustment: Four-cylinder linkage ensures reliable sealing and prevents material leakage (Patent ZL 2018 2 2075756.9).
- 40CrMoTi wear-resistant alloy steel blades: Extends service life 40 times longer than standard steel blades.
- Direct-connected hard-tooth surface reducer: Prevents dual-shaft collision that can cause equipment shutdown.
- Independent air accumulator: Ensures stable pneumatic operation.
- Optional automatic lubrication system: Regular oil injection for seals, extending service life.
- Double-layer hard seal + large-opening double seal: Patented design (ZL 2018 2 2074615.5) ensures reliable sealing even under continuous operation.
What Our Customers Care About
Quality Assurance
Each mixer undergoes rigorous quality control:
- Blade geometry and clearance inspection
- Shaft end seal pressure testing
- Discharge door sealing verification
- Full-load test run before shipment
We offer a 5-year warranty on major components including the main shaft, paddles, and drive system. If the mixer fails to achieve the specified uniformity (≥99%) within the agreed cycle time, we will refund your investment.
Application Flexibility
One mixer can produce multiple products by simply changing the production formula via PLC control:
- Tile Adhesive
- Wall Putty
- Masonry Mortar
- Skim Coat
- Plaster Mortar
- Self-Leveling Mortar
- Dry Mix Mortar
How We Compare to Competitors
| Feature | Tongding Twin Shaft Mixer | Conventional Ribbon Mixer |
|---|---|---|
| Mixing Uniformity | >99% | 90–95% |
| Mixing Cycle | 3–5 minutes | 15–20 minutes |
| Blade Material | 40CrMoTi alloy (40× longer life) | Standard carbon steel |
| Sealing Technology | Patented zero-leakage design | Standard packing seal |
| Additive Dispersion | Excellent (fluidized zone) | Moderate |
| Warranty | 5 years | 12–24 months |
| Refund Policy | Money-back guarantee | Not offered |
| Certification | CE, ISO 9001 | Varies |
Applications
This mixer is widely used in:
- Dry mortar production: Masonry mortar, plaster mortar, repair mortar
- Tile adhesive manufacturing: C1, C2, C2TE, flexible tile adhesive
- Wall finishing: Wall putty, skim coat, gypsum plaster
- Specialty mortars: Self-leveling, waterproof, EIFS, polymer-modified
- Powder blending: Construction chemicals, pigments, fibers, and additives
Why Tongding?
- Founded in 2010 – Over 15 years of manufacturing experience
- Two production bases – Yulong and Wulong, total area 60+ acres, 40,000+ m² floor space
- National High-Tech Enterprise – Recognized as “Specialized and Sophisticated” enterprise in Henan Province
- Intellectual property leader – 26 invention patents, 77 utility patents, 8 design patents, 12 software copyrights
- Exported to 60+ countries – Projects delivered worldwide
- 3 R&D teams – Specializing in drying, mixing, and automation
Ready to Upgrade Your Mixing Line?
Whether you need a 2m³ mixer for specialty production or a 10m³ system for high-output plants, our engineers will customize the equipment configuration based on your materials, formula, and production targets.
* Free equipment selection report, customized layout drawing, and budget estimate within 24 hours
