Slashing Power Costs by 30%: The Engineering Behind Zero-Horizontal-Thrust Rotary Dryers

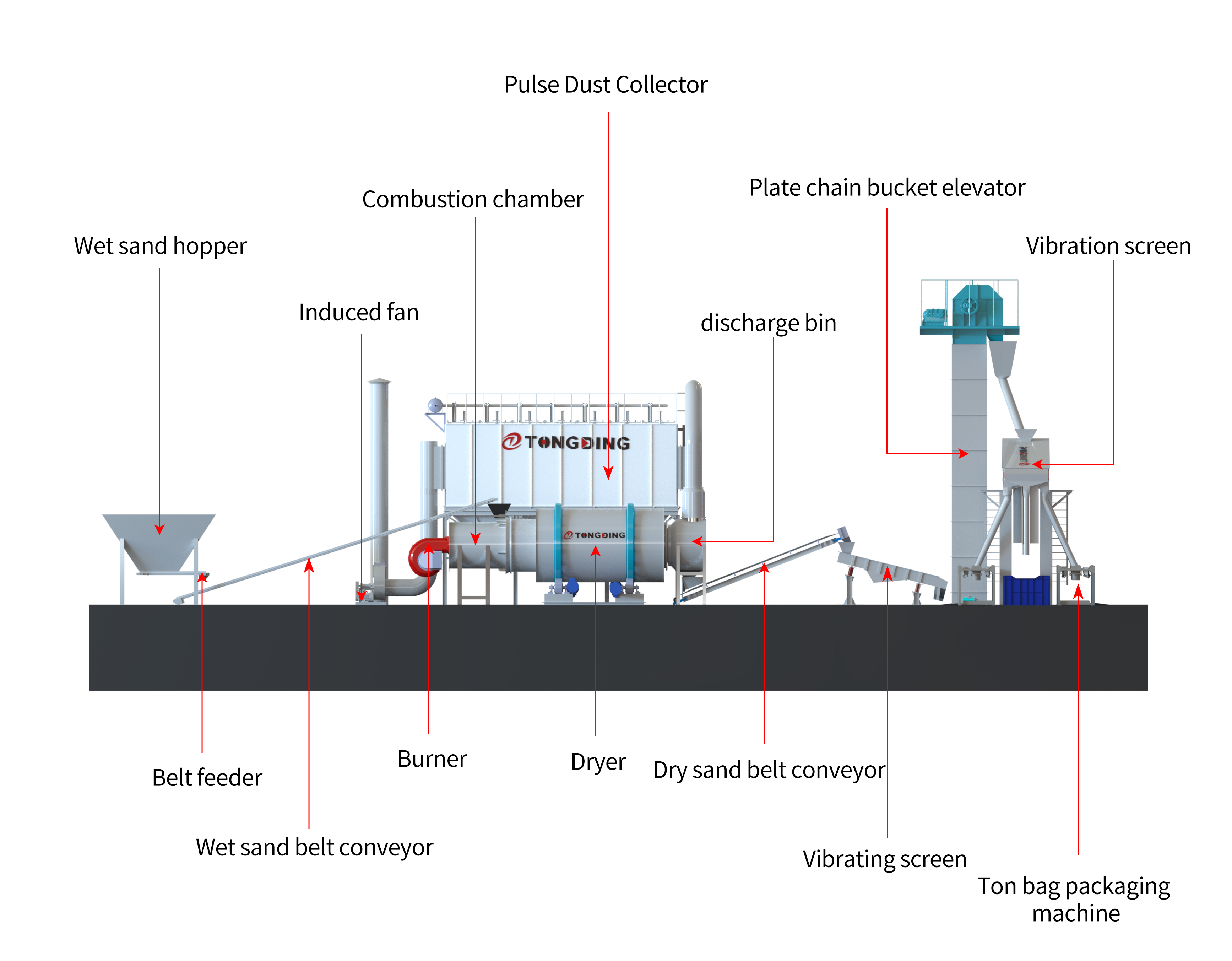

For heavy industrial aggregate plants, ore concentration facilities, and dry mortar factories, the rotary dryer is often the most significant drain on utility resources. While most thermal engineers focus purely on burning systems and fuel optimization, plant owners frequently overlook a major drain on profits: mechanical friction and drive power consumption.

Traditional large-scale single-shell dryers, often spanning up to 40 meters in length, carry dozens of tons of tumbling mineral substrates. The rolling dynamic forces generate massive axial vectors. If the equipment isn’t mechanically aligned to counteract this shifting, it creates intense friction between the riding rings (tyres) and the trunnion rollers.

This mechanical imbalance leads to high amperage spikes on the drive motor, rapid wear on expensive rollers, and frequent seal breaches. To eliminate this operational bottleneck, pioneering heavy machinery manufacturers utilize a highly specialized Zero-Horizontal-Thrust Direct Under-Drive Layout.

1. The Mechanical Flaw of Traditional Rotary Dryer Drives

Standard rotary dryers position the primary driving pinion and girth gear at oblique side angles relative to the drum’s circumference. While this rotation transfers torque, it introduces an asymmetric vector force. As the heavy cylinder turns, this side-mounted configuration pushes the entire shell axially along its baseline slope.

To keep the drum from wandering off its support base, heavy-duty thrust rollers must constantly press against the sides of the riding rings. This creates a severe metal-on-metal friction lock. In a typical 30-ton-per-hour drying plant, up to 25% of your electricity is wasted simply trying to overcome this mechanical resistance, leading to motor overheating and premature bearing failure.

2. Deep Dive Into Zero-Horizontal-Thrust Direct Under-Drive Mechanics

The patented breakthrough by advanced equipment engineers completely re-imagines the force vector matrix of industrial rotating drums. The entire power electricity grid optimization is achieved through two precise alignment parameters:

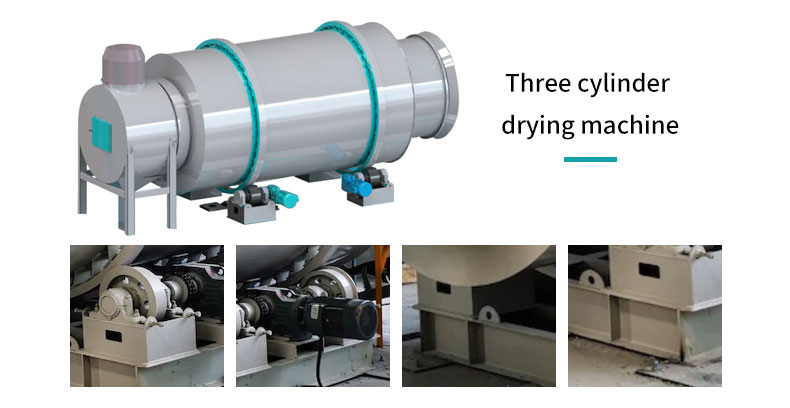

• Perfect Under-Axis Gearing: The driving pinion and gear assembly are moved away from the side and installed directly beneath the vertical center line of the main drum cylinder, keeping structural deviation strictly within ≤5mm. When the pinion engages with the girth gear from directly below, the horizontal driving forces cancel each other out completely, neutralizing horizontal thrust vectors.
• Trunnion Roller Support Optimization: By precisely managing the support angle and base parallelism of the 45# forged steel trunnion rollers, engineers can reduce the net perpendicular pressure exerted on the roller surface. The drum sits in a balanced force state, rotating without any lateral “axial hunting” (shunting back and forth).

3. The Financial Impact: Lowering Plant Power Consumption by 30%+

By transforming the massive structural hunting forces into a smooth rotation with zero lateral load, the drive motor encounters significantly lower operational resistance. The reduction in operational expenditures (OPEX) is immediate and verifiable:

For a mineral processing or dry-mix facility running 16 hours a day, switching to a zero-horizontal-thrust under-drive system cuts thousands of dollars from your monthly electricity overhead while boosting weekly factory uptime.

4. Secondary Thermal Protections: Maintaining the System Heat Equilibrium

A highly stable mechanical drive does not just save electricity—it directly protects the thermal efficiency of the entire drying plant:

1. Protecting the Airtight Seals: When a dryer cylinder hunts axially, it destroys the flexible seals mounted at the drum ends. Cold ambient air rushes into the single pass drum, collapsing the internal vacuum pressure. Because our zero-thrust drum has an axial runout close to zero, our floating stainless-steel fish-scale seals (0.5–1mm thick) maintain a perfect contact seal, limiting cold air leakage to under 3%.

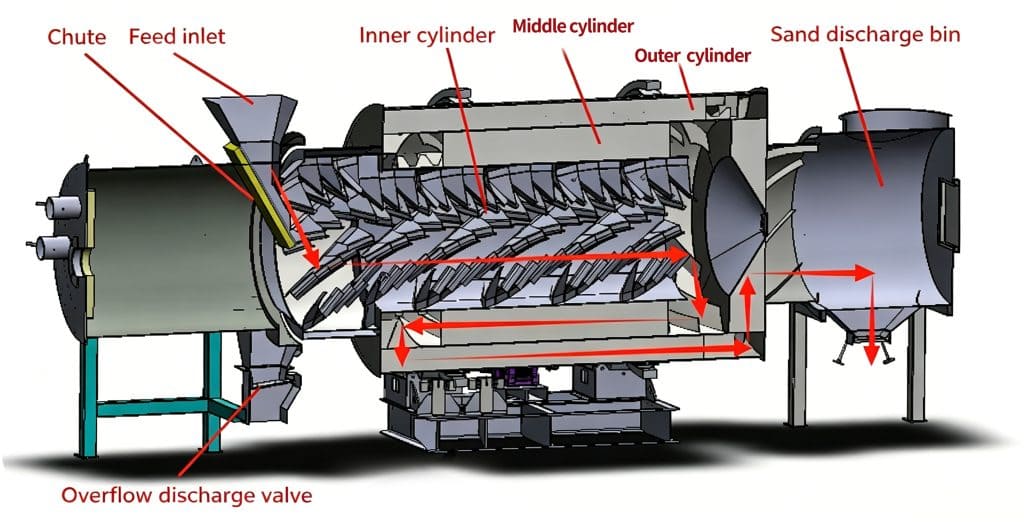

2. Continuous Fluidized Feed Flow: The elimination of mechanical hunting allows the internal multi-bending lifting flights (Patent ZL201711292674.3) to shower materials in a flawless 2 o’clock to 10 o’clock cascading curtain without surging. This forces the hot breeze to sweep through a highly predictable material veil, dropping system thermal radiation losses to an efficient 3% to 5%.

5. Procurement Wisdom for Modern Minerals Plant Designs

When computing the Return on Investment (ROI) for an industrial drying system, looking only at the initial purchase invoice is a strategic mistake. Operational costs like energy consumption and maintenance dictate your true long-term profitability.

Deploying an outdated drive configuration means paying a continuous financial penalty on your power bills month after month. Investing in a Single Pass Long Tube Dryer engineered with a zero-horizontal-thrust direct under-drive design instantly locks in a 30% power reduction, guarantees an efficient 95%+ equipment utilization rate, and transforms your bulk material processing facility into a high-efficiency powerhouse.
