In industrial mineral processing, bentonite, kaolin, pottery clay, and high-moisture geological slips are highly sought-after raw materials. However, their physical molecular structures make them some of the most difficult materials to dry. For plant managers, the primary operational challenge is a phenomenon known as drum caking and wall scaling.

When damp, high-viscosity clay changes states inside a thermal processor, transitioning through a prolonged “sticky phase.” If the system isn’t engineered to handle this mechanical cohesion, the material will bake onto the steel drum shell. This creates a cascade of failures: reduced internal diameters, collapsed thermal efficiency, and frequent unscheduled shutdowns for manual cleaning.

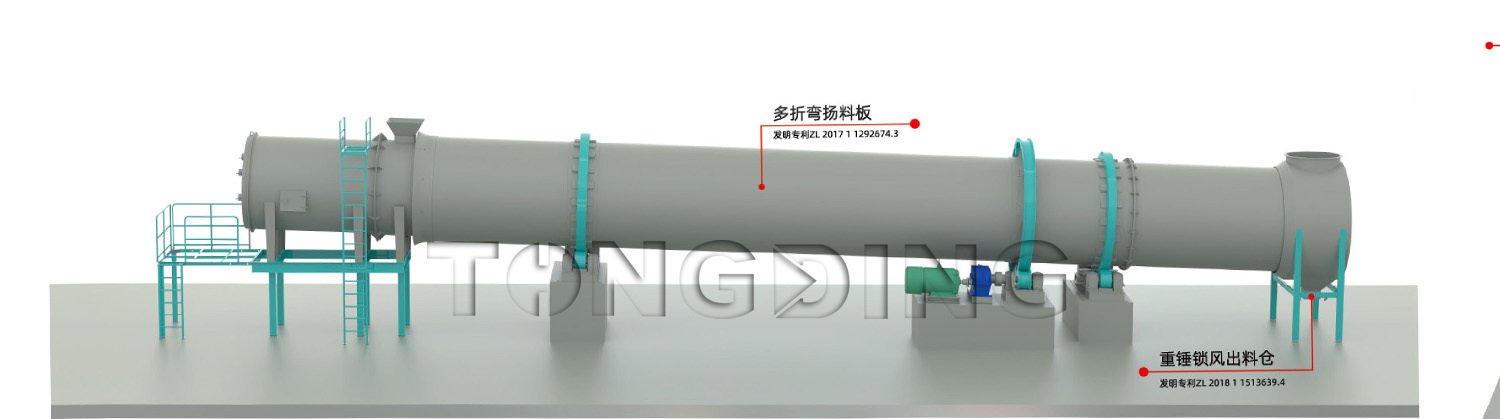

To bypass these bottlenecks, heavy-duty mining and chemical facilities utilize a specialized Single Cylinder (Single Pass) Long Tube Dryer paired with advanced mechanical anti-sticking apparatuses.

1. The Science of the “Sticky Phase” in Industrial Bentonite Drying

Bentonite clay can absorb several times its own dry weight in water, swelling into a thick, low-lubricity paste. As this mineral travels down a drying cylinder, the heat transfers via convection and conduction, rapidly stripping away surface moisture.

However, when the moisture content drops into the 15% to 25% moisture zone, the paste transforms into an elastic, highly adhesive matrix. Under traditional rotary setups, the clay sticks to the inner steel wall rather than cascading through the airflow. Within hours, this baked-on scaling layer hardens, acting as a thermal insulator that increases fuel consumption by 40% while starving the downstream packaging line of product.

2. Phase-Adaptive Lifting Flights: Break, Shower, and Advance

The first line of defense against material caking is the internal geometry of the rotating shell. Advanced single-cylinder dryers utilize a Multi-Structural Combined Flight System that is specifically configured to match the material’s changing physical state:

The material forms a homogeneous curtain through the cross-section, guaranteeing that the hot flue gas penetrates 95%+ of the material bed.

3. Dual-Layer Mechanical Defenses: Cleaning Chains and External Knockers

When moisture levels are highly volatile, internal aerodynamics must be paired with aggressive mechanical physical cleaning to prevent scaling:

1. Internal Cleaning Chains: Heavy-duty, high-tensile scraper chains are mounted loosely along the interior flight brackets. As the drum revolves, these chains slide and smash against the steel surfaces dynamically, scraping away fresh, soft scaling layers before they can bake into a ceramic-like cake.
2. External Gravity Steel-Ball Knockers: Strategically spaced around the exterior circumference of the hot zone are independent mechanical percussion rings. Each ring contains massive steel balls that drop vertically under gravity, striking an anvil welded perpendicularly to the outer shell.

The resulting impact vibration resonates through the steel cylinder wall, shaking loose any micro-scaling layers instantly. In continuous industrial operations, this combined defense system reduces inner wall accumulation by over 85% and improves net thermal uptime to 95% or higher.

4. Advanced Process Control: Regulating Variable Retention Time via PLC

Bentonite mining sites often deal with material that features wildly erratic moisture variables depending on weather and excavation depths. A rigid drying profile will over-dry or under-dry the product.

Modern single cylinder dryers feature advanced PLC Integrated Control Cabinets paired with variable-frequency variable-speed drum drives. Utilizing real-time inputs from exhaust gas and dry sand temperature sensors, the control system can automatically dial the drum speed from 1 to 9 r/min. If a wet patch of clay enters the line, the drum slows down automatically, expanding the material retention time inside the heat matrix to ensure the finished product reliably reaches its exact target moisture curve (≤0.5%–1% final moisture).

5. The Bottom Line for Plant Operators

Drying cohesive bentonite or kaolin with traditional multi-pass drums is an expensive operational gamble that usually ends in choked internals and ruined components. By deploying a custom Single Cylinder Long Tube Dryer engineered with multi-bending adaptive lifting flights, dual-layer mechanical vibrators, and a zero-horizontal-thrust under-drive, factory managers can secure a 40% gain in run-time stability while driving down plant energy costs significantly.
