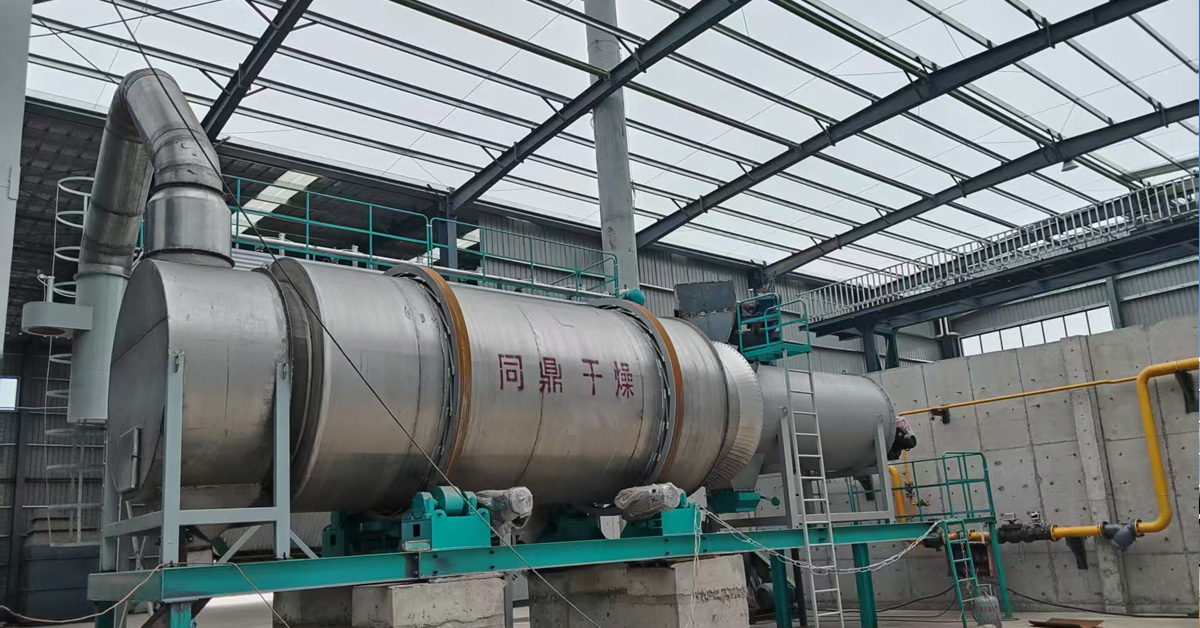

Three-Pass Dryer – Energy-Efficient Sand Drying Solution for Manufactured Sand & Dry-Mix Mortar

Industry Pain Points: Why Traditional Single-Drum Dryers Are Falling Behind

Driven by sustained global infrastructure construction in recent years, the industries of manufactured sand, river sand and dry-mix mortar have expanded steadily, resulting in surging demand for sand and stone drying equipment. However, conventional single-cylinder dryers available on the market suffer from common industrial drawbacks including low heat utilization rate, large floor space occupation, excessive energy consumption and unstable moisture content of discharged materials. These long-standing problems have troubled numerous sand and aggregate manufacturers and pushed up the daily operating costs of the entire production line.

To address these long-standing industry pain points, Tongding Machinery has carried out all-round technical upgrades to the overall structure and heat exchange system of the three-pass sand dryer. The equipment adopts a three-layer sleeve nested structure. Materials undergo three cycles of heat exchange inside the cylinder, which fully recovers waste heat from exhaust gas. It thoroughly solves the defects of severe heat loss and uneven drying inherent in traditional dryers, delivering comprehensive improvements in core drying performance.

Five Core Technical Highlights of the Newly Upgraded Three-Pass Dryer

1. Ultra-High Energy Efficiency – Reduce Fuel Cost by 15-20%

Featuring a closed circulating heat exchange structure, the energy-saving sand dryer cuts overall energy consumption by 15-20% compared with ordinary single-cylinder dryers. It greatly lowers expenditure on gas, coal and electricity, effectively slashing daily operating costs of production lines. For sand processing plants, this translates into significant long-term savings.

2. Uniform Drying – Stable Moisture Control ≤1%

Materials tumble and exchange heat three times, enabling full contact between hot air and sand & aggregates. The moisture content of finished sand can be stably controlled below 1%, fully meeting strict material standards for high-grade dry-mix mortar and construction engineering sand. This industrial sand dryer ensures consistent quality for downstream applications.

3. Compact Modular Design – 1/3 Footprint of Single-Drum Dryer

Adopting an integrated modular design, the triple-pass dryer occupies only about 1/3 of the floor area of a conventional single-drum dryer with the same capacity. Complicated civil foundations are not required; the machine can be assembled on-site and put into operation quickly with a short commissioning cycle, delivering fast return on investment—ideal for plants with limited space.

4. Durable Construction – Built for Harsh Working Conditions

Equipped with a pulse dust removal system and constructed with thickened wear-resistant steel plates for the cylinder, this rotary sand dryer perfectly suits harsh job sites featuring high temperature, high humidity and heavy dust in Zambia, Nigeria, Southeast Asia and other regions. It boasts a low failure rate and hassle-free maintenance, ensuring continuous operation in demanding environments.

5. PLC Intelligent Control – One-Button Automation

Fitted with a touch screen electric control cabinet, the machine supports one-click start and stop. It monitors furnace temperature, feed rate and discharge moisture in real time, cutting reliance on manual labor and avoiding human operational errors. This automatic sand drying system enhances production efficiency and reduces labor costs.

Global Case Studies: Proven Performance in Challenging Markets

The newly upgraded three-pass rotary dryers have been exported in batches to Zambia, Nigeria, Thailand, Vietnam and other countries. On-site tests lasting more than four months verify stable equipment operation with drastically reduced material transportation loss. The product effectively helps overseas sand and aggregate clients achieve integrated upgrades in energy saving, quality improvement and profit growth. These sand drying equipment solutions are now trusted by manufacturers across Africa and Southeast Asia.

The Future of Sand Drying: Low-Carbon, Intelligent, High-Efficiency

Industry analysis indicates that low-carbon energy conservation and full automatic intelligence will be the core development trends of global sand and aggregate drying equipment in the next three years. High-performance three-pass dryers will gradually replace old-fashioned high-energy-consumption drying equipment, becoming the preferred main drying unit for small, medium and large sand aggregate production lines as well as dry-mix mortar production lines both at home and abroad.
