Industrial Dryer High-Efficiency Dehydration Technology Update

High-Efficiency Sand Drying System for Dry Mortar Production, Construction Materials and Industrial Minerals

Industrial sand drying is a critical process in the production of dry mortar, tile adhesive, wall putty, foundry sand, frac sand, and various industrial mineral products. Excess moisture in raw materials can lead to material blockage, inconsistent product quality, reduced production efficiency, and increased transportation costs.

Tongding’s rotary sand dryer is engineered to deliver fast, uniform, and energy-efficient performance across a wide range of granular and powder materials. Equipped with advanced heat exchange technology, intelligent temperature control, and energy-saving heat recovery systems, this industrial drying equipment ensures stable operation and low operating costs.

Whether you are producing dry mix mortar, processing mineral materials, or upgrading an existing sand drying plant, our industrial sand dryer machine provides a reliable solution for moisture reduction and product quality improvement.

Why Choose Our Sand Drying System?

High Drying Efficiency

The rotary sand dryer adopts a specially designed lifting system that continuously disperses materials throughout the drum, maximizing contact between hot air and material particles.

• Faster moisture evaporation
• Uniform drying performance
• Improved heat transfer efficiency
• Stable final moisture content

The final moisture content can be controlled according to production requirements, making the industrial dryer suitable for demanding applications.

Energy-Saving Operation

Energy consumption is a major concern in industrial drying processes.

Our sand drying equipment integrates:

• Optimized combustion chamber design
• Heat recovery technology
• High-efficiency airflow management
• Thermal insulation system

These features significantly reduce fuel consumption while maintaining high drying performance.

Stable and Reliable Performance

The equipment is engineered for continuous industrial operation.

• Heavy-duty steel structure
• Reinforced support frame
• Wear-resistant internal components
• High-temperature resistant refractory lining
• Dual sealing system

These features extend equipment lifespan and reduce maintenance requirements.

Flexible Heat Source Options

Different industries require different energy solutions.

The industrial sand dryer can be configured with:

• Natural Gas Burner
• Biomass Burner
• Diesel Burner
• Coal Burner
• LPG Burner

Heat source selection can be customized according to local energy costs and environmental requirements.

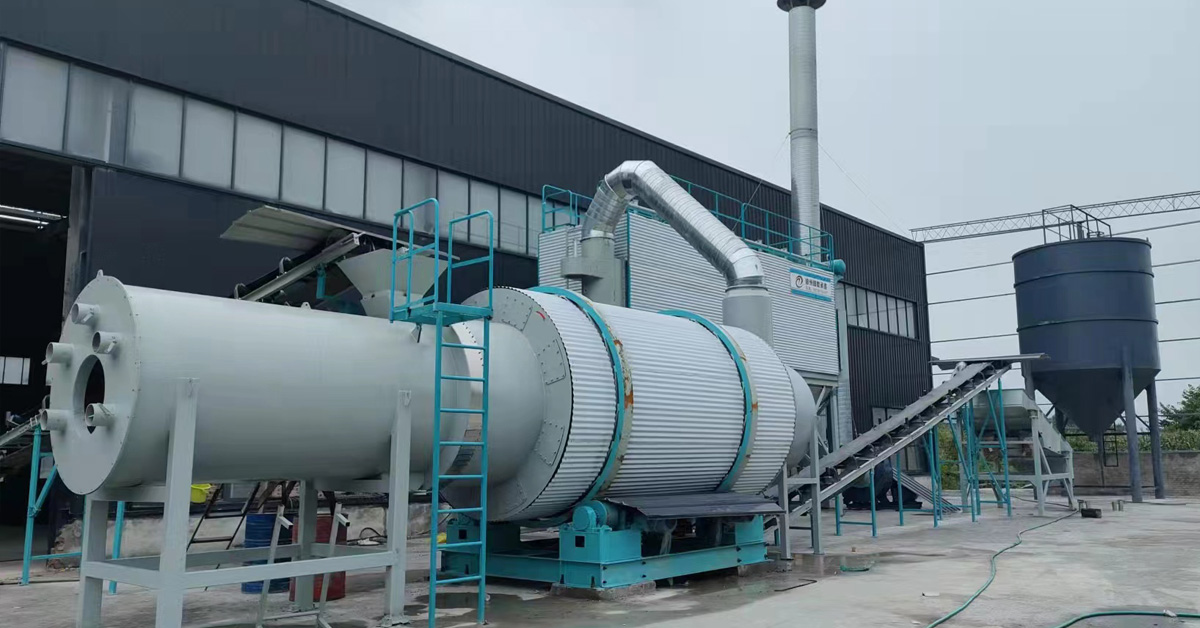

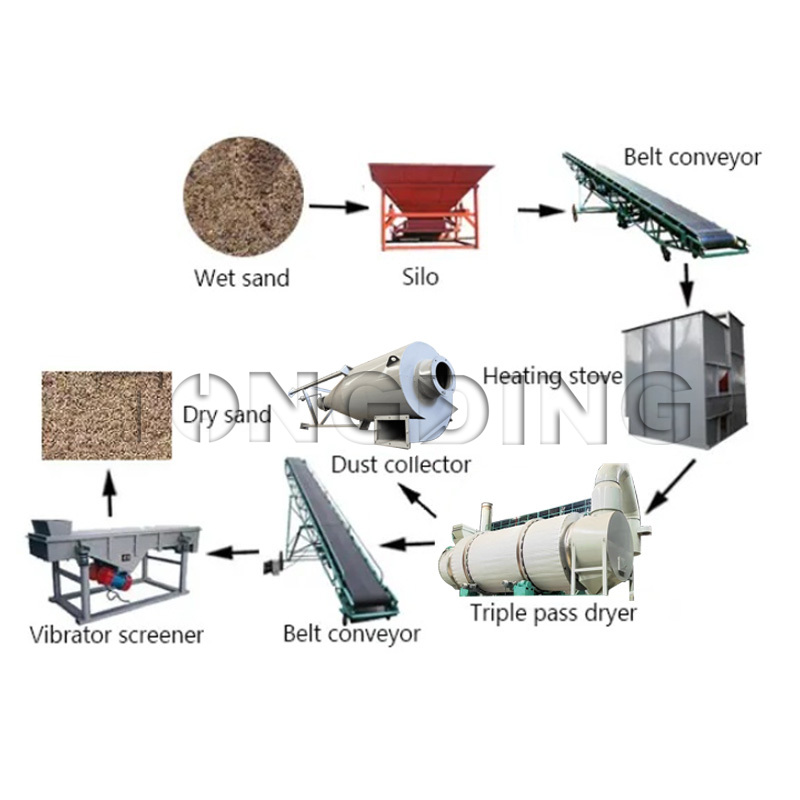

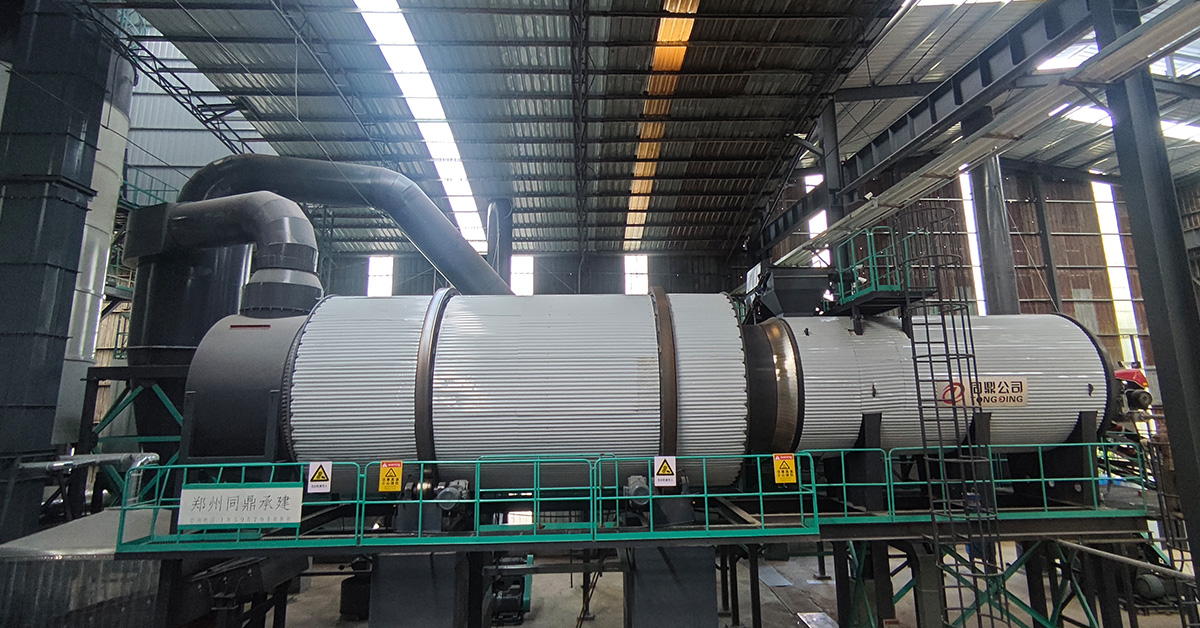

Working Principle of Rotary Sand Dryer

The sand drying machine operates through a closed-loop drying process consisting of four major stages:

1. Heat Generation

The burner system converts fuel into high-temperature hot air.

2. Heat Exchange

Wet materials enter the rotating drum and are repeatedly lifted and scattered by specially designed lifting plates. This creates a large contact area between materials and hot air, accelerating moisture evaporation.

3. Exhaust Treatment

Dust-laden exhaust gas is drawn into the dust collection system under negative pressure. Dust particles are recovered while purified gas is discharged according to environmental standards.

4. Material Discharge

Dried materials are continuously discharged and transported to the next production stage. The entire process is monitored automatically to ensure stable operation and consistent product quality.

Technical Advantages

Patented Multi-Bend Lifting Plate Design

The specially engineered lifting plate system creates a full material curtain inside the drum.

• Increased heat exchange area
• Improved drying uniformity
• Higher thermal efficiency
• Reduced drying time

Triple Drying Zone Structure

The drying chamber is divided into:

• High Temperature Zone: Rapid surface moisture removal.
• Constant Temperature Zone: Deep moisture evaporation.
• Cooling Zone: Material stabilization before discharge.

This design prevents overheating while ensuring consistent product quality.

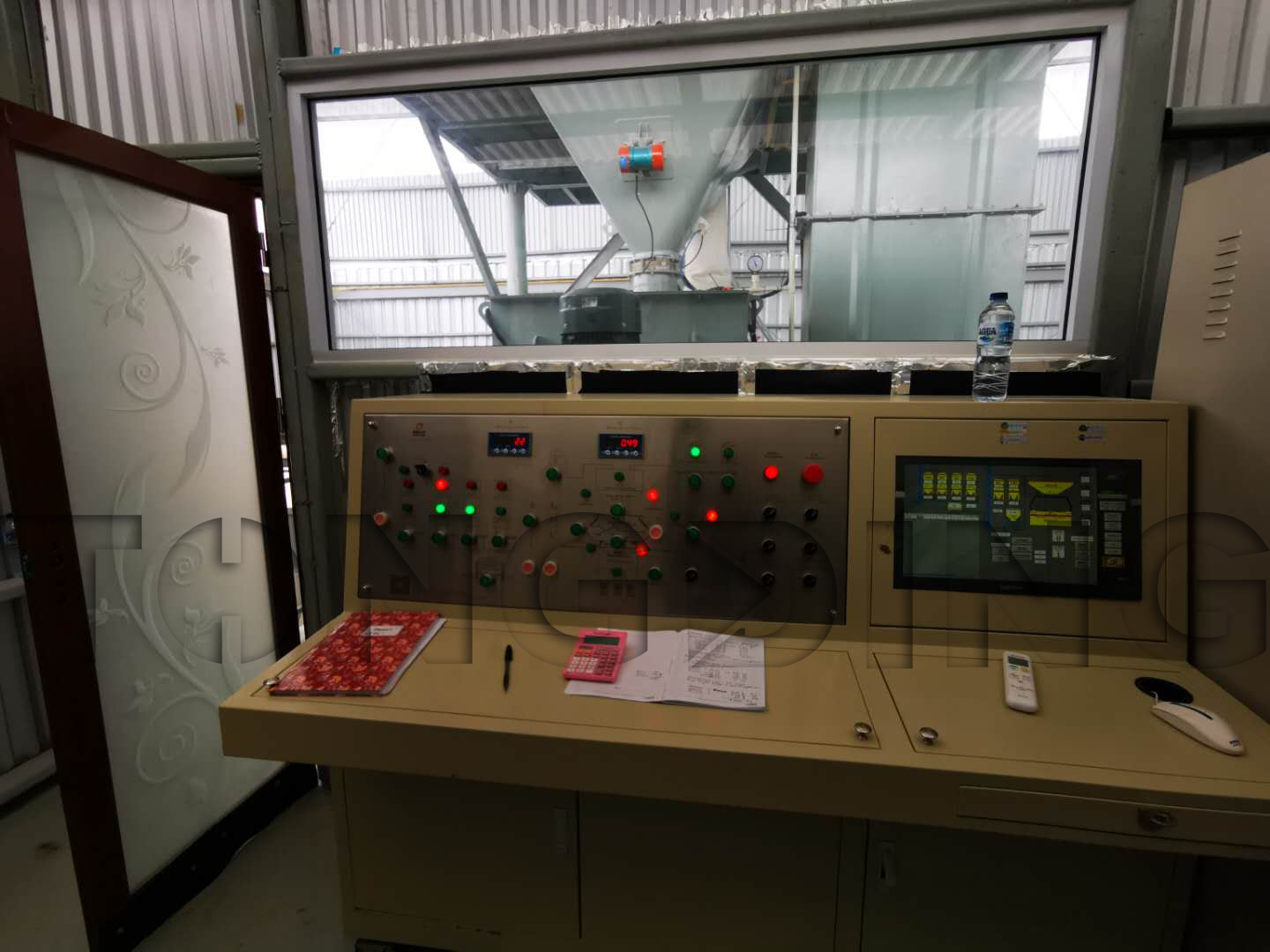

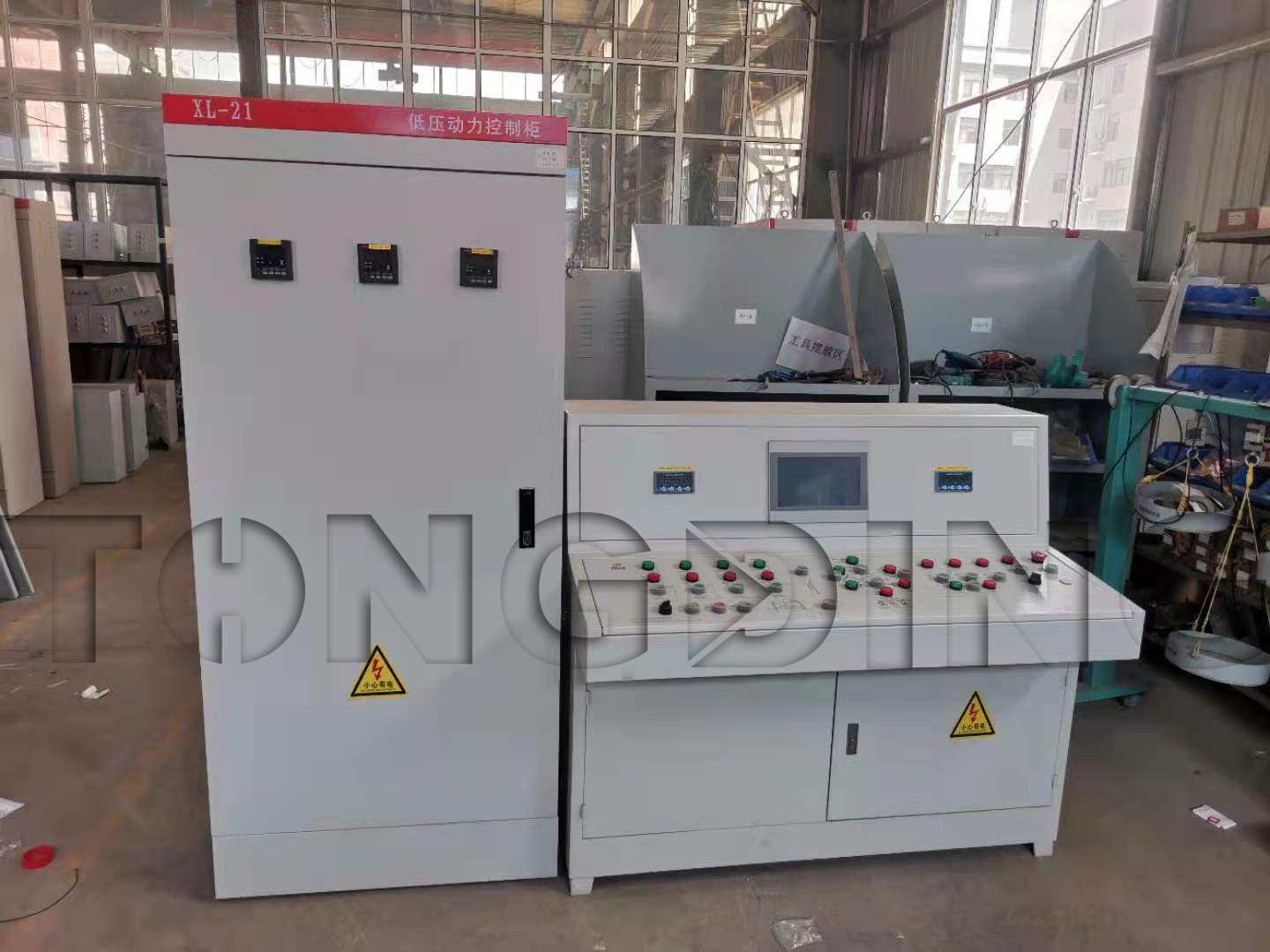

Intelligent Control System

The automated control system continuously monitors:

• Temperature
• Moisture content
• Airflow
• Negative pressure
• Fuel consumption

This improves operational stability while reducing labor requirements.

Applications

Our industrial sand dryer is suitable for a wide range of materials.

Construction Materials

• River Sand
• Sea Sand
• Quartz Sand
• Yellow Sand
• Dry Mortar Sand
• Tile Adhesive Sand

Mining and Mineral Processing

• Tailings Sand
• Copper Ore Sand
• Iron Ore Sand
• Fluorite Powder
• Feldspar Powder
• Colored Sand

Foundry Industry

• Foundry Sand
• Resin-Coated Sand
• Casting Sand

Energy Industry

• Coal
• Biomass Fuel
• Wood Chips
• Sawdust

Industrial Powder Materials

• Fly Ash
• Calcium Carbonate Powder
• Gypsum Powder
• Mineral Powder

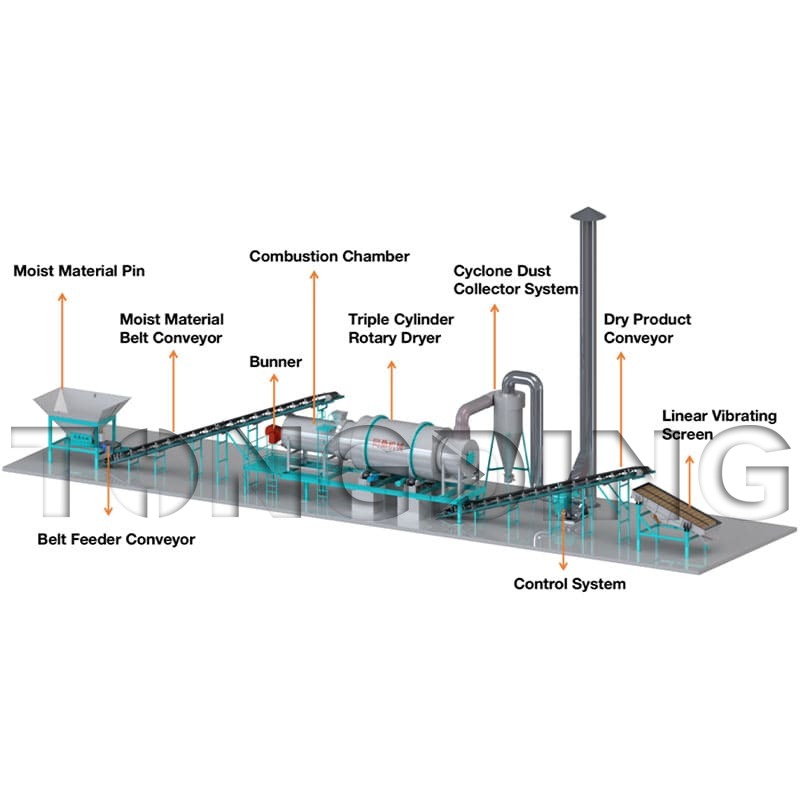

Available Sand Drying Equipment Configurations

We offer customized industrial drying systems according to:

Production Capacity

• 5-10 TPH
• 10-20 TPH
• 20-30 TPH
• 30-60 TPH
• 60-100 TPH+

Material Type

Different lifting structures and drying parameters can be configured according to material characteristics.

Moisture Content

Suitable for materials with moisture content ranging from 5% to 30%.

Frequently Asked Questions

What materials can be processed by the industrial sand dryer?
The sand drying system is suitable for sand, mineral materials, biomass fuel, industrial powders, foundry sand, and various bulk materials.

What is the final moisture content after drying?
The final moisture content can typically be reduced below 0.5% depending on material properties and production requirements.

Which heat source is most economical?
The most economical option depends on local energy prices. Natural gas and biomass are commonly selected for their balance of efficiency and operating cost.

Can the dryer be integrated into an existing dry mortar production line?
Yes. The equipment can be integrated with existing dry mortar plants, tile adhesive plants, screening systems, and storage silos.

Do you provide installation and commissioning services?
Yes. Tongding provides equipment installation, commissioning, operator training, and after-sales technical support worldwide.

How do I select the correct sand dryer machine capacity?
Our engineering team will recommend a suitable model based on your material type, moisture content, required output capacity, and local operating conditions.

Why Choose Tongding?

• Turnkey Project Solutions: From equipment selection to commissioning, we provide complete drying plant solutions.
• Global Project Experience: Equipment installed in Asia, Africa, the Middle East, and South America.
• Customized Engineering Design: Every solution is optimized according to raw material characteristics and production requirements.
• Long-Term Technical Support: Remote assistance, spare parts supply, and professional after-sales service.

Request a Free Industrial Sand Dryer Proposal

Looking for a reliable Industrial Sand Dryer Manufacturer? Contact Tongding today to receive:

• ✓ Dryer Capacity Recommendation
• ✓ Process Flow Design
• ✓ Equipment Configuration Plan
• ✓ Energy Consumption Analysis
• ✓ Factory Layout Proposal
• ✓ Competitive Factory Price

Send us your material type, moisture content, and required capacity. Our engineers will provide a customized drying solution within 24 hours.
